group "RoutingExplicitDetails.model"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	4 elements
Defined:	globally in fpml-shared-5-3.xsd; see XML source
Includes:	definitions of 4 elements
Used:	at 2 locations

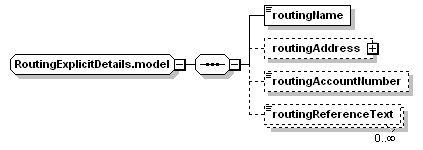

Content Model Diagram

Complex Content Model

Content Model Elements (4):

Known Usage Locations

XML Source (w/o annotations (4); see within schema source)

<xsd:sequence>

<xsd:element name="routingName" type="xsd:string"/>

<xsd:element minOccurs="0" name="routingAddress" type="Address"/>

<xsd:element minOccurs="0" name="routingAccountNumber" type="xsd:string"/>

<xsd:element maxOccurs="unbounded" minOccurs="0" name="routingReferenceText" type="xsd:string"/>

</xsd:sequence>

</xsd:group>

Content Element Detail (all declarations; defined within this component only; 4/4)

Type:

xsd:string, predefined, simple content

An account number via which a payment can be routed.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="routingAccountNumber" type="xsd:string"/>

Type:

Address, complex content

A physical postal address via which a payment can be routed.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="routingAddress" type="Address"/>

Type:

xsd:string, predefined, simple content

A real name that is used to identify a party involved in the routing of a payment.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="routingName" type="xsd:string"/>

Type:

xsd:string, predefined, simple content

A piece of free-format text used to assist the identification of a party involved in the routing of a payment.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="0" name="routingReferenceText" type="xsd:string"/>
