group "RoutingIdentification.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
3 elements
Defined:
globally in fpml-shared-5-3.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 4 locations

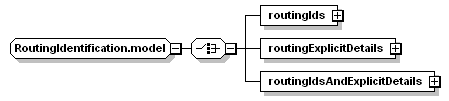

Content Model Diagram
Complex Content Model
routingIds | routingExplicitDetails | routingIdsAndExplicitDetails
Content Model Elements (3):
routingExplicitDetails, routingIdsAndExplicitDetails
Known Usage Locations
XML Source (w/o annotations (3); see within schema source)
<xsd:group name="RoutingIdentification.model">
<xsd:choice>
<xsd:element name="routingIds" type="RoutingIds"/>
<xsd:element name="routingExplicitDetails" type="RoutingExplicitDetails"/>
<xsd:element name="routingIdsAndExplicitDetails" type="RoutingIdsAndExplicitDetails"/>
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 3/3)
routingExplicitDetails
Type:
RoutingExplicitDetails, complex content
A set of details that is used to identify a party involved in the routing of a payment when the party does not have a code that identifies it within one of the recognized payment systems.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="routingExplicitDetails" type="RoutingExplicitDetails"/>
routingIds
Type:
RoutingIds, complex content
A set of unique identifiers for a party, eachone identifying the party within a payment system. The assumption is that each party will not have more than one identifier within the same payment system.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="routingIds" type="RoutingIds"/>
routingIdsAndExplicitDetails
Type:
RoutingIdsAndExplicitDetails, complex content
A combination of coded payment system identifiers and details for physical addressing for a party involved in the routing of a payment.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="routingIdsAndExplicitDetails" type="RoutingIdsAndExplicitDetails"/>
