group "AdjustedAndOrUnadjustedDate.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
3 elements
Defined:
globally in fpml-valuation-5-3.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 1 location

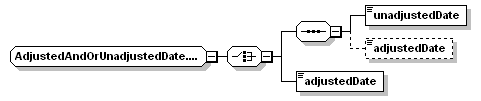

Content Model Diagram
Complex Content Model
(unadjustedDate, adjustedDate?) | adjustedDate
Content Model Elements (3):
adjustedDate (defined in AdjustedAndOrUnadjustedDate.model group),
adjustedDate (defined in AdjustedAndOrUnadjustedDate.model group),
unadjustedDate (defined in AdjustedAndOrUnadjustedDate.model group)
Known Usage Locations
Annotation
Contains at least one of an adjusted date and and unadjusted date, using the usual meanings of those terms.
XML Source (w/o annotations (1); see within schema source)
<xsd:group name="AdjustedAndOrUnadjustedDate.model">
<xsd:choice>
<xsd:sequence>
<xsd:element name="unadjustedDate" type="xsd:date"/>
<xsd:element minOccurs="0" name="adjustedDate" type="xsd:date"/>
</xsd:sequence>
<xsd:element name="adjustedDate" type="xsd:date"/>
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 3/3)
adjustedDate
Type:
xsd:date, predefined, simple content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="adjustedDate" type="xsd:date"/>
adjustedDate
Type:
xsd:date, predefined, simple content
XML Source (see within schema source)
<xsd:element name="adjustedDate" type="xsd:date"/>
unadjustedDate
Type:
xsd:date, predefined, simple content
XML Source (see within schema source)
<xsd:element name="unadjustedDate" type="xsd:date"/>
