element <publication> (local)
Namespace:
http://www.fpml.org/FpML-5/pretrade
Type:
CommodityInformationSource
Content:
complex, 3 elements
Defined:
locally witnin CommodityReferencePriceFramework.model group in fpml-asset-5-5.xsd; see XML source

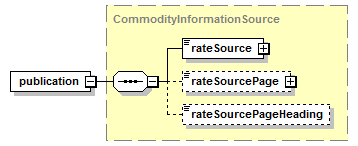

Content Model Diagram
XML Representation Summary
<publication>

Content:
 rateSource, rateSourcePage?, rateSourcePageHeading?
</publication>
Content model elements (3):
rateSource (in publication), rateSourcePageHeading (in publication)
Included in content model of elements (1):
commodity
Annotation
For those commodities being traded with reference to a price distributed by a publication, that publication should be specified here.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="publication" type="CommodityInformationSource"/>
