element <requestLimitCheck> (global)

Namespace:	http://www.fpml.org/FpML-5/pretrade
Type:	RequestLimitCheck
Content:	complex, 3 attributes, 25 elements
Defined:	globally in fpml-pretrade-processes-5-5.xsd; see XML source
Used:	never

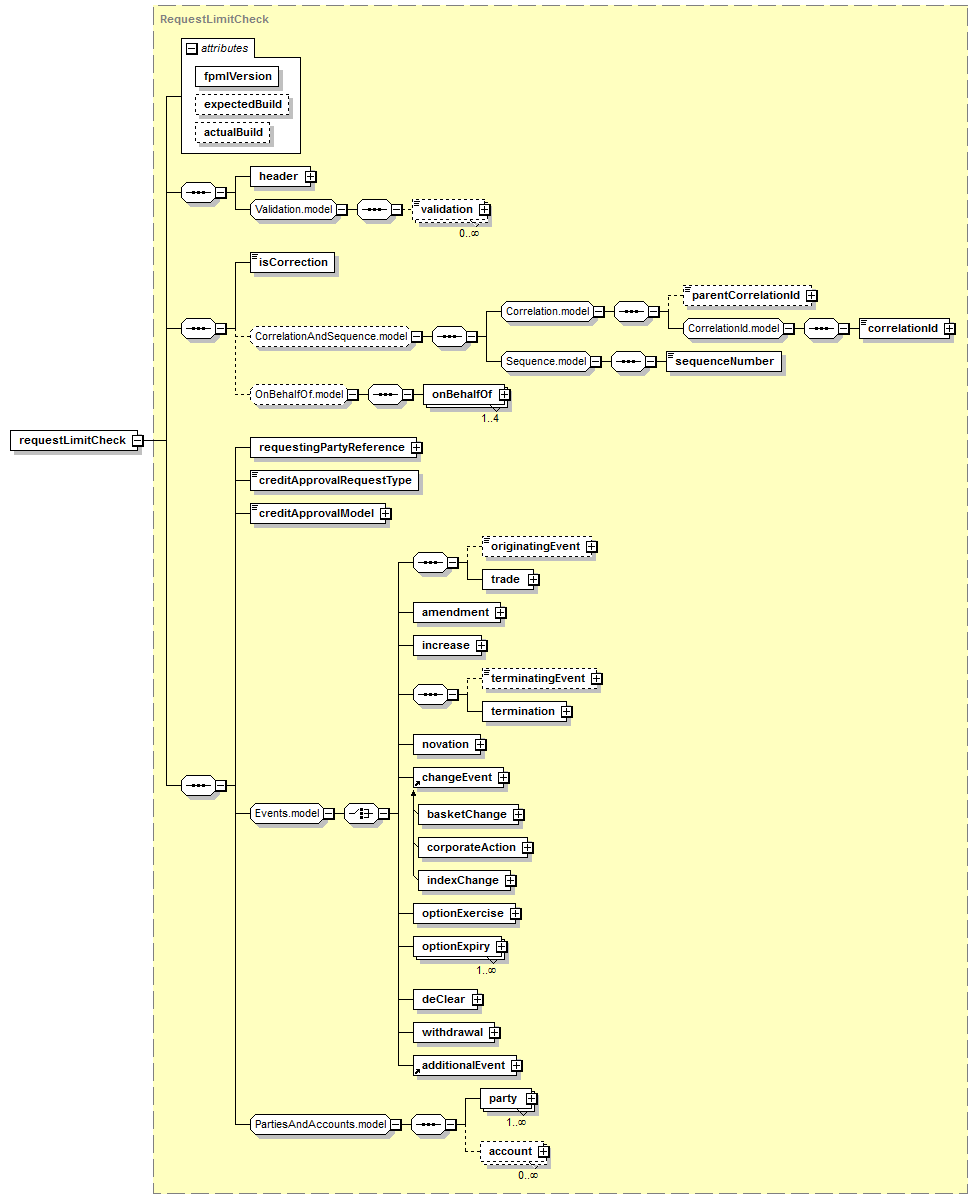

Content Model Diagram

XML Representation Summary

<requestLimitCheck

fpmlVersion	=	xsd:token
expectedBuild	=	xsd:positiveInteger
actualBuild	=	"1"

>

Content:

header, validation*, isCorrection, (parentCorrelationId?, correlationId, sequenceNumber)?, onBehalfOf[1..4]?, requestingPartyReference, creditApprovalRequestType, creditApprovalModel, ((originatingEvent?, trade) | amendment | increase | (terminatingEvent?, termination) | novation | changeEvent | optionExercise | optionExpiry+ | deClear | withdrawal | additionalEvent), party+, account*

</requestLimitCheck>

Content model elements (25):

additionalEvent,

creditApprovalModel (in requestLimitCheck),

creditApprovalRequestType (in requestLimitCheck),

header (defined in RequestMessage complexType),

onBehalfOf (defined in OnBehalfOf.model group),

optionExercise,

optionExpiry (in requestLimitCheck),

originatingEvent (in requestLimitCheck),

parentCorrelationId,

requestingPartyReference (in requestLimitCheck),

sequenceNumber (defined in Sequence.model group),

terminatingEvent (in requestLimitCheck),

trade (in requestLimitCheck),

May contain elements by substitutions (3):

basketChange, corporateAction, indexChange

XML Source (see within schema source)

<xsd:element name="requestLimitCheck" type="RequestLimitCheck"/>
