group "Events.model"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	13 elements
Defined:	globally in fpml-business-events-5-5.xsd; see XML source
Includes:	definitions of 13 elements
Used:	at 22 locations

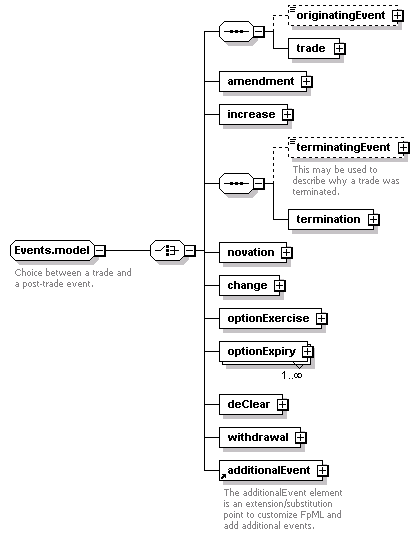

Content Model Diagram

Complex Content Model

Content Model Elements (13):

additionalEvent,

amendment,

change (defined in Events.model group),

optionExpiry (defined in Events.model group),

originatingEvent (defined in Events.model group),

terminatingEvent (defined in Events.model group),

termination,

trade (defined in Events.model group),

withdrawal

Known Usage Locations

In definitions of other model groups (2):
ClearingResults.model, EventsOrInfo.model
In definitions of global complexTypes (20):
ClearingEligibility, ClearingRefused, ConfirmationAgreed, ConfirmationDisputed, ConfirmationRetracted, EventProposedMatch, EventsChoice, ExecutionAdvice, ExecutionAdviceRetracted, ExecutionNotification, ExecutionRetracted, PositionHistory, RequestClearing, RequestClearingEligibility, RequestClearingRetracted, RequestConfirmation, RequestConsent, RequestConsentRetracted, RequestExecution, RequestExecutionRetracted

Annotation

Choice between a trade and a post-trade event.

XML Source (w/o annotations (3); see within schema source)

<xsd:group name="Events.model">

<xsd:choice>

<xsd:sequence>

<xsd:element minOccurs="0" name="originatingEvent" type="OriginatingEvent"/>

<xsd:element name="trade" type="Trade"/>

</xsd:sequence>

<xsd:element name="amendment" type="TradeAmendmentContent"/>

<xsd:element name="increase" type="TradeNotionalChange"/>

<xsd:sequence>

<xsd:element minOccurs="0" name="terminatingEvent" type="TerminatingEvent"/>

<xsd:element name="termination" type="TradeNotionalChange"/>

</xsd:sequence>

<xsd:element name="novation" type="TradeNovationContent"/>

<xsd:element name="change" type="TradeChangeContent"/>

<xsd:element name="optionExercise" type="OptionExercise"/>

<xsd:element maxOccurs="unbounded" name="optionExpiry" type="OptionExpiry"/>

<xsd:element name="deClear" type="DeClear"/>

<xsd:element name="withdrawal" type="Withdrawal"/>

<xsd:element ref="additionalEvent"/>

</xsd:choice>

</xsd:group>

Content Element Detail (all declarations; defined within this component only; 13/13)

additionalEvent

Type:	AdditionalEvent, complex content
Abstract:	(may not be used directly in instance XML documents)

The additionalEvent element is an extension/substitution point to customize FpML and add additional events.

XML Source (w/o annotations (1); see within schema source)

<xsd:element ref="additionalEvent"/>

amendment

Type:

TradeAmendmentContent, complex content

XML Source (see within schema source)

<xsd:element name="amendment" type="TradeAmendmentContent"/>

change

Type:

TradeChangeContent, complex content

XML Source (see within schema source)

<xsd:element name="change" type="TradeChangeContent"/>

deClear

Type:

DeClear, complex content

XML Source (see within schema source)

<xsd:element name="deClear" type="DeClear"/>

increase

Type:

TradeNotionalChange, complex content

XML Source (see within schema source)

<xsd:element name="increase" type="TradeNotionalChange"/>

novation

Type:

TradeNovationContent, complex content

XML Source (see within schema source)

<xsd:element name="novation" type="TradeNovationContent"/>

optionExercise

Type:

OptionExercise, complex content

XML Source (see within schema source)

<xsd:element name="optionExercise" type="OptionExercise"/>

optionExpiry

Type:

OptionExpiry, complex content

XML Source (see within schema source)

<xsd:element maxOccurs="unbounded" name="optionExpiry" type="OptionExpiry"/>

originatingEvent

Type:

OriginatingEvent, simple content

Simple Content

xsd:normalizedString

maxLength:

255

XML Source (see within schema source)

<xsd:element minOccurs="0" name="originatingEvent" type="OriginatingEvent"/>

terminatingEvent

Type:

TerminatingEvent, simple content

This may be used to describe why a trade was terminated.

Simple Content

xsd:normalizedString

maxLength:

255

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="terminatingEvent" type="TerminatingEvent"/>

termination

Type:

TradeNotionalChange, complex content

XML Source (see within schema source)

<xsd:element name="termination" type="TradeNotionalChange"/>

trade

Type:

Trade, complex content

XML Source (see within schema source)

<xsd:element name="trade" type="Trade"/>

withdrawal

Type:

Withdrawal, complex content

XML Source (see within schema source)

<xsd:element name="withdrawal" type="Withdrawal"/>
