group "ReportableEvents.model"
Namespace:
http://www.fpml.org/FpML-5/reporting
Content:
14 elements
Defined:
globally in fpml-reporting-5-5.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

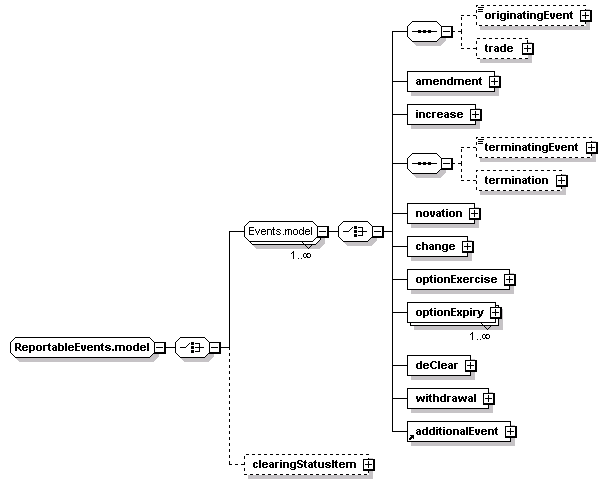

Content Model Diagram
Complex Content Model
((originatingEvent?, trade?) | amendment | increase | (terminatingEvent?, termination?) | novation | change | optionExercise | optionExpiry+ | deClear | withdrawal | additionalEvent)+ | clearingStatusItem?
Content Model Elements (14):
additionalEvent, optionExercise,
optionExpiry (defined in Events.model group),
originatingEvent (defined in Events.model group),
terminatingEvent (defined in Events.model group),
trade (defined in Events.model group),
Known Usage Locations
XML Source (w/o annotations (1); see within schema source)
<xsd:group name="ReportableEvents.model">
<xsd:choice>
<xsd:group maxOccurs="unbounded" ref="Events.model"/>
<xsd:element minOccurs="0" name="clearingStatusItem" type="ClearingStatusItem"/>
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 1/14)
clearingStatusItem
Type:
ClearingStatusItem, complex content
Describes the status of the clearing process relating to the identified trade.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="clearingStatusItem" type="ClearingStatusItem"/>
