element <convertibleBond> (global)
Namespace:
http://www.fpml.org/FpML-5/pretrade
Type:
ConvertibleBond
Content:
complex, 1 attribute, 18 elements
Subst.Gr:
may substitute for element underlyingAsset
Defined:
globally in fpml-asset-5-6.xsd; see XML source
Used:
at 1 location

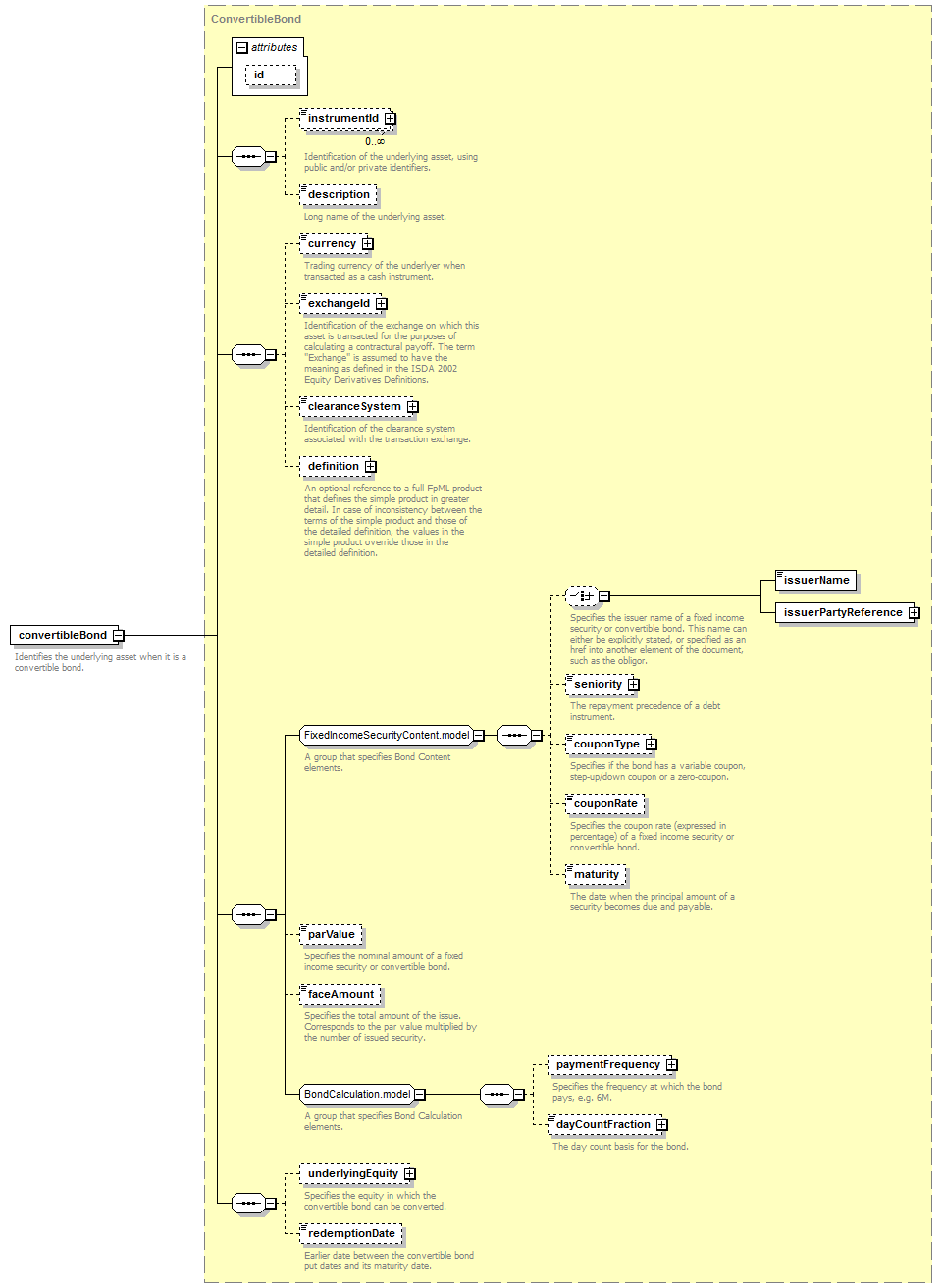

Content Model Diagram
XML Representation Summary
<convertibleBond

id
 =
 xsd:ID
    >

Content:
 instrumentId*, description?, currency?, exchangeId?, clearanceSystem?, definition?, (issuerName | issuerPartyReference)?, seniority?, couponType?, couponRate?, maturity?, parValue?, faceAmount?, paymentFrequency?, dayCountFraction?, underlyingEquity?, redemptionDate?
</convertibleBond>
Content model elements (18):
clearanceSystem,
currency (defined in UnderlyingAsset complexType),
description (defined in IdentifiedAsset complexType),
exchangeId (defined in UnderlyingAsset complexType),
 instrumentId (defined in IdentifiedAsset complexType),
Included in content model of elements (2):
referenceObligation (in referenceInformation), referenceObligation (in referencePair)
Known Usage Locations
Annotation
Identifies the underlying asset when it is a convertible bond.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="convertibleBond" substitutionGroup="underlyingAsset" type="ConvertibleBond"/>
