element <creditDefaultSwapOption> (global)
Namespace:
Type:
Content:
complex, 1 attribute, 25 elements
Subst.Gr:
may substitute for element product
Defined:
globally in fpml-cd-5-6.xsd; see XML source
Used:
never

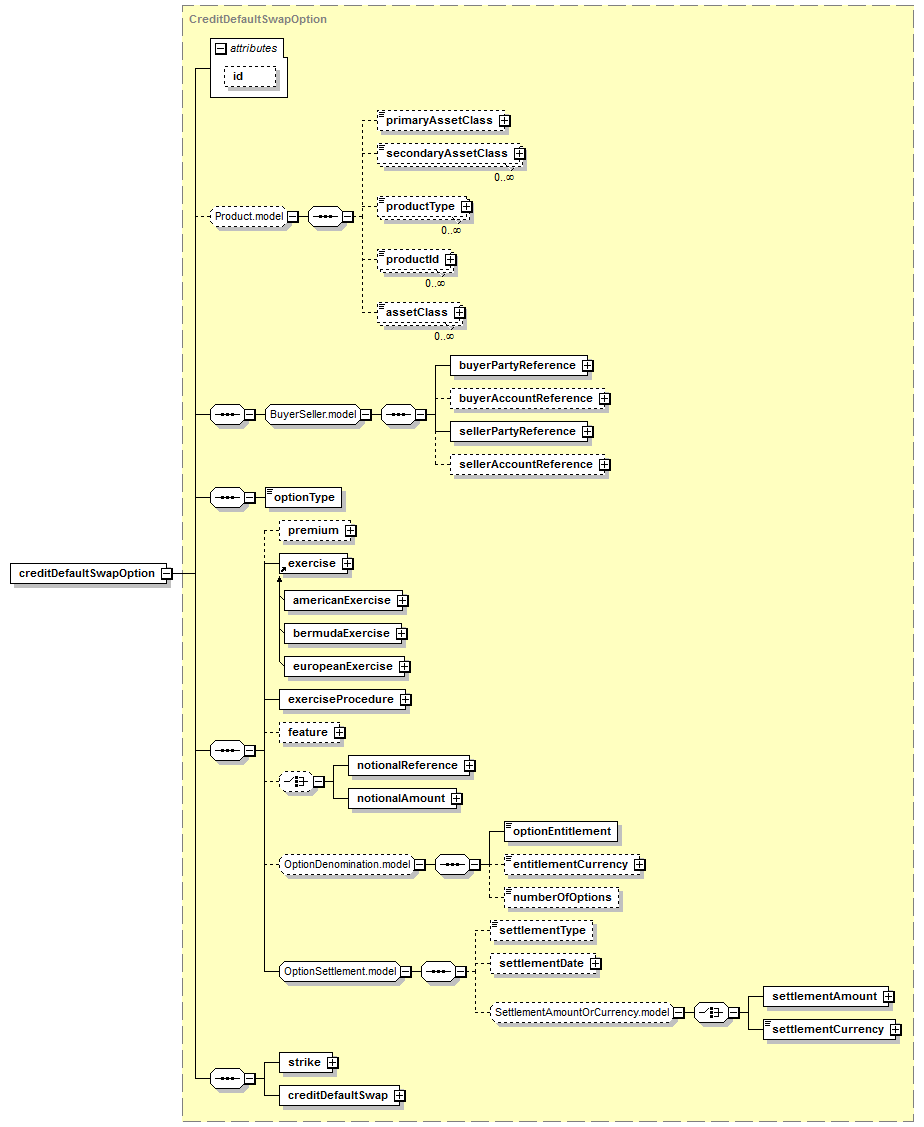

Content Model Diagram
XML Representation Summary
<creditDefaultSwapOption

 =
xsd:ID

>

Content:
</creditDefaultSwapOption>
Content model elements (25):
assetClass,
buyerAccountReference,
buyerPartyReference (defined in BuyerSeller.model group),
creditDefaultSwap (in creditDefaultSwapOption),
entitlementCurrency,
exercise,
exerciseProcedure (defined in OptionBaseExtended complexType),
feature (defined in OptionBaseExtended complexType),
notionalAmount (defined in OptionBaseExtended complexType),
notionalReference (defined in OptionBaseExtended complexType),
numberOfOptions (defined in OptionDenomination.model group),
optionEntitlement (defined in OptionDenomination.model group),
optionType (defined in OptionBase complexType),
premium (defined in OptionBaseExtended complexType),
primaryAssetClass,
productId (defined in Product.model group),
productType (defined in Product.model group),
secondaryAssetClass,
sellerAccountReference,
sellerPartyReference (defined in BuyerSeller.model group),
settlementAmount,
settlementCurrency (defined in SettlementAmountOrCurrency.model group),
settlementDate (defined in OptionSettlement.model group),
settlementType (defined in OptionSettlement.model group),
strike (in creditDefaultSwapOption)
May contain elements by substitutions (3):
americanExercise, bermudaExercise, europeanExercise
May be included in elements by substitutions (17):
feeTrade,
newTrade,
oldTrade (defined in TradeChangeContent complexType),
oldTrade (in novation),
originalTrade (defined in TradeChangeBase complexType),
originalTrade (in optionExercise),
originalTrade (in optionExpiry defined in Events.model group),
physicalSettlement (in optionExercise),
resultingTrade,
strategy,
trade (defined in DataDocument complexType),
trade (defined in Events.model group),
trade (defined in TradeChangeContent complexType),
trade (defined in TradeOrInfo.model group),
trade (in affectedTransactions),
trade (in amendment),
trade (in clearingStatusItem)
Annotation
An option on a credit default swap.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="creditDefaultSwapOption" substitutionGroup="product" type="CreditDefaultSwapOption"/>
