element <rateIndex> (global)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	RateIndex
Content:	complex, 1 attribute, 10 elements
Subst.Gr:	may substitute for element curveInstrument
Defined:	globally in fpml-asset-5-7.xsd; see XML source
Used:	never

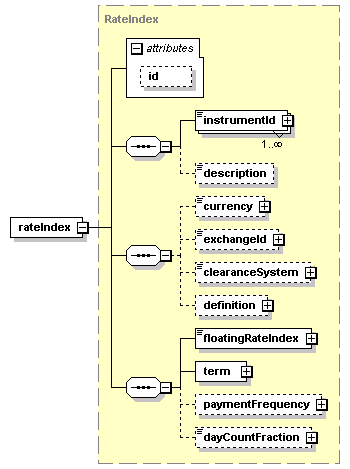

Content Model Diagram

XML Representation Summary

<rateIndex

xsd:ID

Content:

instrumentId+, description?, currency?, exchangeId?, clearanceSystem?, definition?, floatingRateIndex, term, paymentFrequency?, dayCountFraction?

</rateIndex>

Content model elements (10):

clearanceSystem,

currency (defined in UnderlyingAsset complexType),

dayCountFraction (in rateIndex),

definition (defined in UnderlyingAsset complexType),

description (defined in IdentifiedAsset complexType),

exchangeId (defined in UnderlyingAsset complexType),

floatingRateIndex (in rateIndex),

instrumentId (defined in IdentifiedAsset complexType),

paymentFrequency (in rateIndex),

term (in rateIndex)

May be included in elements by substitutions (1):

instrumentSet

Annotation

Identifies a simple underlying asset that is an interest rate index. Used for specifying benchmark assets in the market environment in the pricing and risk model.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="rateIndex" substitutionGroup="curveInstrument" type="RateIndex"/>
