group "TradeLegFixedAmountChange.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
3 elements
Defined:
globally in fpml-business-events-5-7.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 1 location

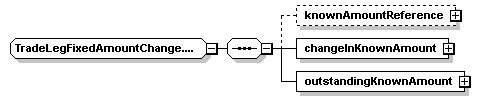

Content Model Diagram
Complex Content Model
knownAmountReference?, changeInKnownAmount, outstandingKnownAmount
Content Model Elements (3):
changeInKnownAmount, knownAmountReference, outstandingKnownAmount
Known Usage Locations
XML Source (see within schema source)
<xsd:group name="TradeLegFixedAmountChange.model">
<xsd:sequence>
<xsd:element minOccurs="0" name="knownAmountReference" type="AmountReference"/>
<xsd:element name="changeInKnownAmount" type="NonNegativeMoney"/>
<xsd:element name="outstandingKnownAmount" type="NonNegativeMoney"/>
</xsd:sequence>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 3/3)
changeInKnownAmount
Type:
NonNegativeMoney, complex content
XML Source (see within schema source)
<xsd:element name="changeInKnownAmount" type="NonNegativeMoney"/>
knownAmountReference
Type:
AmountReference, empty content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="knownAmountReference" type="AmountReference"/>
outstandingKnownAmount
Type:
NonNegativeMoney, complex content
XML Source (see within schema source)
<xsd:element name="outstandingKnownAmount" type="NonNegativeMoney"/>
