element <executionNotification> (global)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	ExecutionNotification
Content:	complex, 3 attributes, 24 elements
Defined:	globally in fpml-confirmation-processes-5-7.xsd; see XML source
Used:	never

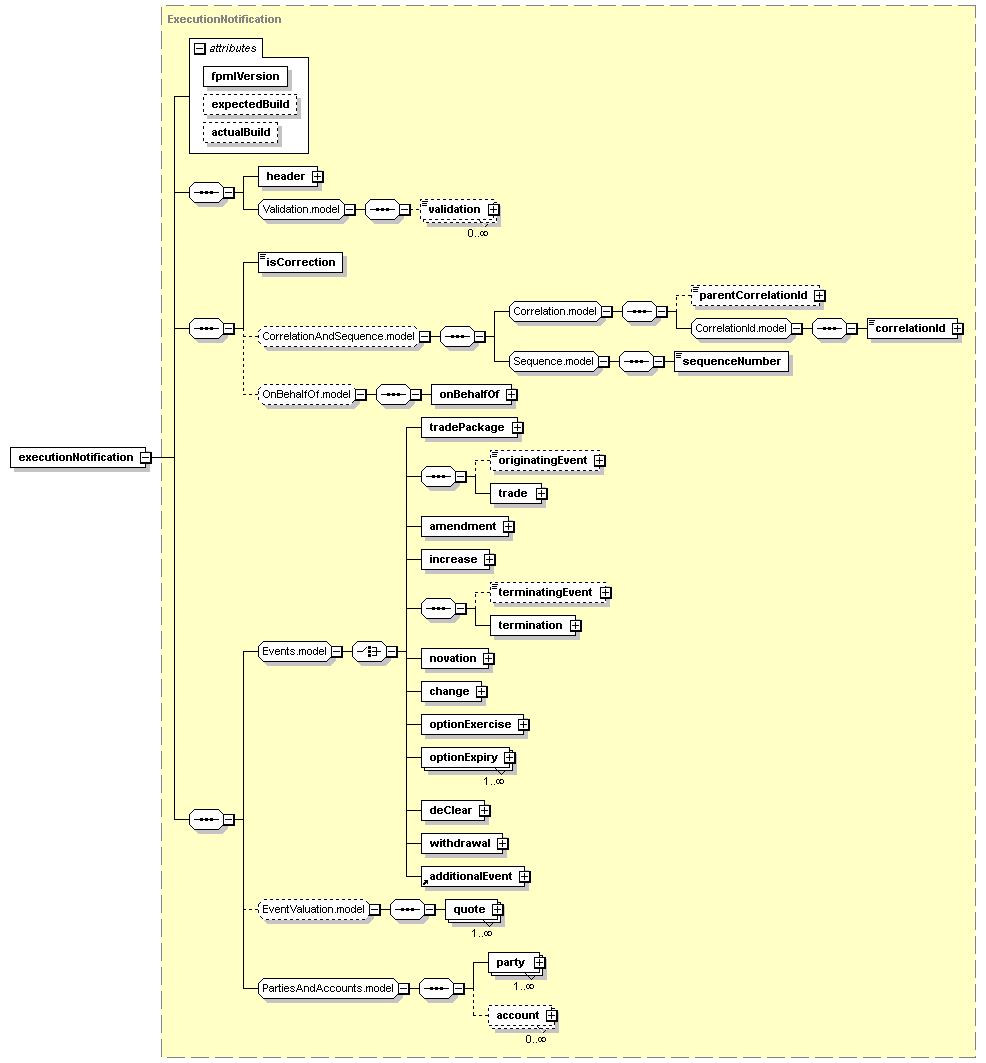

Content Model Diagram

XML Representation Summary

<executionNotification

fpmlVersion	=	xsd:token
expectedBuild	=	xsd:positiveInteger
actualBuild	=	"4"

>

Content:

header, validation*, isCorrection, (parentCorrelationId?, correlationId, sequenceNumber)?, onBehalfOf?, (tradePackage | (originatingEvent?, trade) | amendment | increase | (terminatingEvent?, termination) | novation | change | optionExercise | optionExpiry+ | deClear | withdrawal | additionalEvent), quote+?, party+, account*

</executionNotification>

Content model elements (24):

additionalEvent,

change (defined in Events.model group),

header (defined in RequestMessage complexType),

onBehalfOf (defined in OnBehalfOf.model group),

optionExercise,

optionExpiry (defined in Events.model group),

originatingEvent (defined in Events.model group),

parentCorrelationId,

party (defined in PartiesAndAccounts.model group),

quote (defined in EventValuation.model group),

sequenceNumber (defined in Sequence.model group),

terminatingEvent (defined in Events.model group),

trade (defined in Events.model group),

tradePackage (defined in Events.model group),

XML Source (see within schema source)

<xsd:element name="executionNotification" type="ExecutionNotification"/>
