element <creditEventNotification> (global)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	CreditEventNotification
Content:	complex, 3 attributes, 9 elements
Defined:	globally in fpml-credit-event-notification-5-7.xsd; see XML source
Used:	never

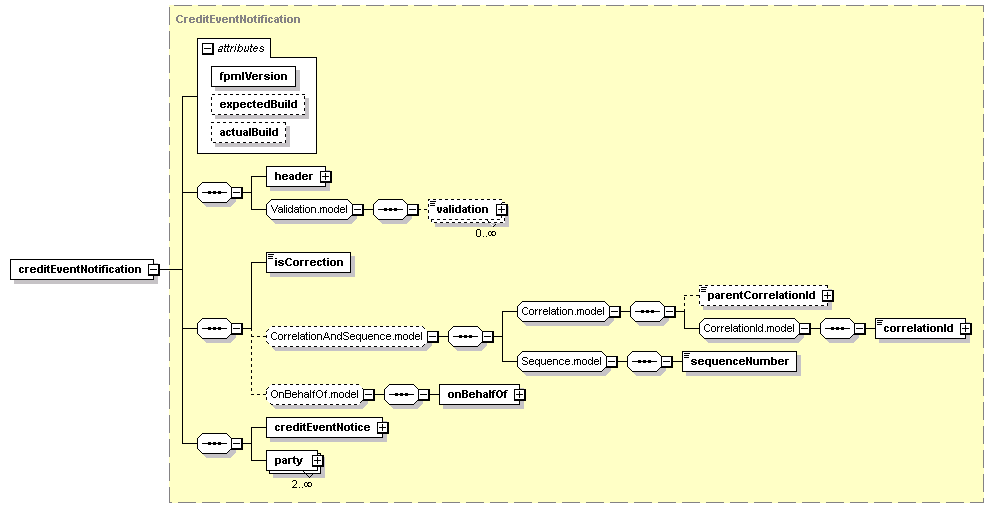

Content Model Diagram

XML Representation Summary

<creditEventNotification

fpmlVersion	=	xsd:token
expectedBuild	=	xsd:positiveInteger
actualBuild	=	"4"

Content:

header, validation*, isCorrection, (parentCorrelationId?, correlationId, sequenceNumber)?, onBehalfOf?, creditEventNotice, party[2..*]

</creditEventNotification>

Content model elements (9):

correlationId,

creditEventNotice (in creditEventNotification),

header (defined in RequestMessage complexType),

isCorrection,

onBehalfOf (defined in OnBehalfOf.model group),

parentCorrelationId,

party (in creditEventNotification),

sequenceNumber (defined in Sequence.model group),

validation

Annotation

A message defining the ISDA defined Credit Event Notice. ISDA defines it as an irrevocable notice from a Notifying Party to the other party that describes a Credit Event that occurred. A Credit Event Notice must contain detail of the facts relevant to the determination that a Credit Event has occurred.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="creditEventNotification" type="CreditEventNotification"/>
