element <exchangeRate> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
ExchangeRate
Content:
complex, 6 elements
Defined:
locally within FxCoreDetails.model group in fpml-fx-5-7.xsd; see XML source

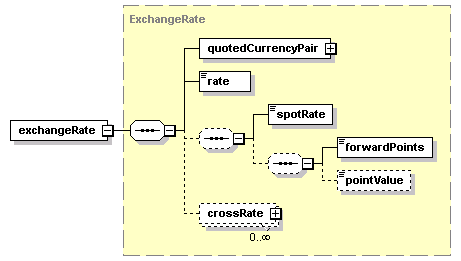

Content Model Diagram
XML Representation Summary
<exchangeRate>

Content:
</exchangeRate>
Content model elements (6):
crossRate (in exchangeRate defined in FxCoreDetails.model group),
forwardPoints (in exchangeRate defined in FxCoreDetails.model group),
pointValue (in exchangeRate defined in FxCoreDetails.model group),
quotedCurrencyPair (in exchangeRate defined in FxCoreDetails.model group),
rate (in exchangeRate defined in FxCoreDetails.model group),
spotRate (in exchangeRate defined in FxCoreDetails.model group)
Included in content model of elements (3):
farLeg, fxSingleLeg, nearLeg
Annotation
The rate of exchange between the two currencies.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="exchangeRate" type="ExchangeRate"/>
