element <ds:Signature> (global)
Namespace:
http://www.w3.org/2000/09/xmldsig#
Type:
ds:SignatureType
Content:
complex, 1 attribute, 4 elements
Defined:
globally in xmldsig-core-schema.xsd; see XML source
Used:
at 1 location

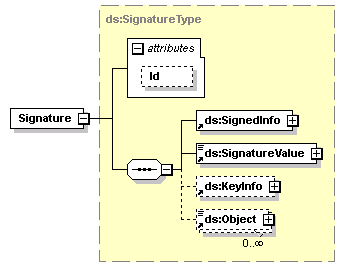

Content Model Diagram
XML Representation Summary
<ds:Signature

 =
ID

>

Content:
</ds:Signature>
Content model elements (4):
ds:KeyInfo, ds:Object, ds:SignatureValue, ds:SignedInfo
Included in content model of elements (4):
header (defined in Exception complexType),
header (defined in NotificationMessage complexType),
header (defined in RequestMessage complexType),
header (defined in ResponseMessage complexType)
Known Usage Locations
XML Source (see within schema source)
<element name="Signature" type="ds:SignatureType"/>
