element <changeInNotionalAmount> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	NonNegativeMoney
Content:	complex, 1 attribute, 2 elements
Defined:	locally within TradeNotionalChange.model group in fpml-business-events-5-8.xsd; see XML source

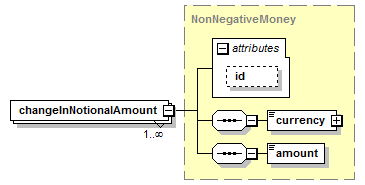

Content Model Diagram

XML Representation Summary

<changeInNotionalAmount

xsd:ID

Content:

currency, amount

</changeInNotionalAmount>

Content model elements (2):

amount (defined in NonNegativeMoney complexType),

currency (defined in MoneyBase complexType)

Included in content model of elements (3):

increase,

termination (defined in PostTradeEvents.model group),

termination (in clearingConfirmed)

Annotation

Specifies the fixed amount by which the Notional Amount changes. The direction of the change (increase or decrease) is specified by the event type (Termination => reduction, Increase => greater.)

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" name="changeInNotionalAmount" type="NonNegativeMoney"/>
