element <clearingConfirmed> (global) | XML Schema Documentation

element <clearingConfirmed> (global)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	ClearingConfirmed
Content:	complex, 3 attributes, 19 elements
Defined:	globally in fpml-confirmation-processes-5-8.xsd; see XML source
Used:	never

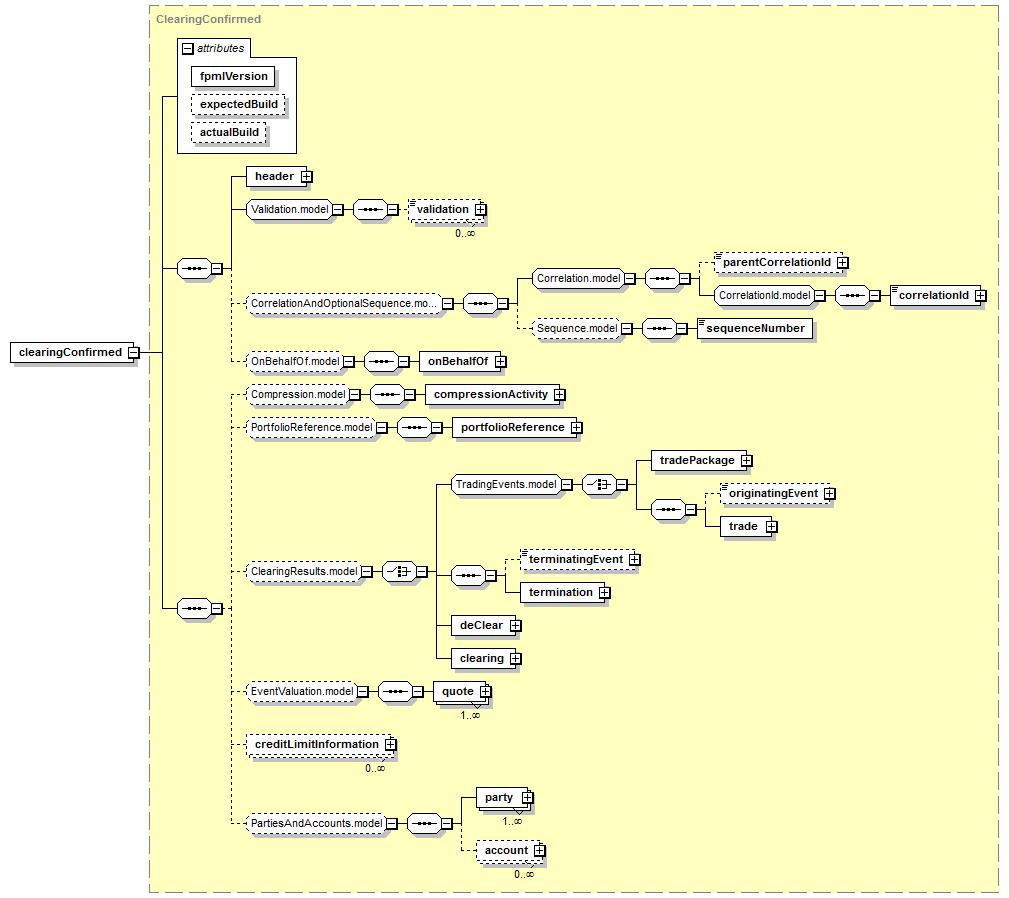

Content Model Diagram

XML Representation Summary

<clearingConfirmed

fpmlVersion	=	xsd:token
expectedBuild	=	xsd:positiveInteger
actualBuild	=	"3"

>

Content:

header, validation*, (parentCorrelationId?, correlationId, sequenceNumber?)?, onBehalfOf?, compressionActivity?, portfolioReference?, (tradePackage | (originatingEvent?, trade) | (terminatingEvent?, termination) | deClear | clearing)?, quote+?, creditLimitInformation*, (party+, account*)?

</clearingConfirmed>

Content model elements (19):

compressionActivity,

creditLimitInformation (in clearingConfirmed),

deClear (in clearingConfirmed),

header (defined in NotificationMessage complexType),

onBehalfOf (defined in OnBehalfOf.model group),

originatingEvent (defined in TradingEvents.model group),

parentCorrelationId,

party (defined in PartiesAndAccounts.model group),

portfolioReference (defined in PortfolioReference.model group),

quote (defined in EventValuation.model group),

sequenceNumber (defined in Sequence.model group),

terminatingEvent (in clearingConfirmed),

termination (in clearingConfirmed),

trade (defined in TradingEvents.model group),

tradePackage (defined in TradingEvents.model group),

XML Source (see within schema source)

<xsd:element name="clearingConfirmed" type="ClearingConfirmed"/>
