group "TradingEvents.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
3 elements
Defined:
globally in fpml-business-events-5-8.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 11 locations

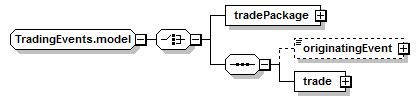

Content Model Diagram
Complex Content Model
tradePackage | (originatingEvent?, trade)
Content Model Elements (3):
trade (defined in TradingEvents.model group),
Known Usage Locations
Annotation
Choice between a trade and a post-trade event.
XML Source (w/o annotations (1); see within schema source)
<xsd:group name="TradingEvents.model">
<xsd:choice>
<xsd:element name="tradePackage" type="TradePackage"/>
<xsd:sequence>
<xsd:element minOccurs="0" name="originatingEvent" type="OriginatingEvent"/>
<xsd:element name="trade" type="Trade"/>
</xsd:sequence>
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 3/3)
originatingEvent
Type:
OriginatingEvent, simple content
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (see within schema source)
<xsd:element minOccurs="0" name="originatingEvent" type="OriginatingEvent"/>
trade
Type:
Trade, complex content
XML Source (see within schema source)
<xsd:element name="trade" type="Trade"/>
tradePackage
Type:
TradePackage, complex content
XML Source (see within schema source)
<xsd:element name="tradePackage" type="TradePackage"/>
