group "CommodityCoalComposition.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
5 elements
Defined:
globally in fpml-com-5-8.xsd; see XML source
Includes:
definitions of 5 elements
Used:
at 1 location

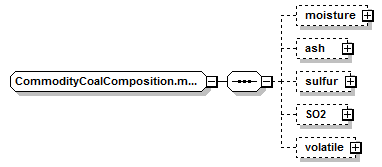

Content Model Diagram
Complex Content Model
moisture?, ash?, sulfur?, SO2?, volatile?
Content Model Elements (5):
SO2, ash, moisture, sulfur, volatile
Known Usage Locations
Annotation
Items defining the chemical composition of the coal product.
XML Source (w/o annotations (6); see within schema source)
<xsd:group name="CommodityCoalComposition.model">
<xsd:sequence>
<xsd:element minOccurs="0" name="moisture" type="CoalAttributePercentage"/>
<xsd:element minOccurs="0" name="ash" type="CoalAttributePercentage"/>
<xsd:element minOccurs="0" name="sulfur" type="CoalAttributePercentage"/>
<xsd:element minOccurs="0" name="SO2" type="CoalAttributePercentage"/>
<xsd:element minOccurs="0" name="volatile" type="CoalAttributePercentage"/>
</xsd:sequence>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 5/5)
ash
Type:
CoalAttributePercentage, complex content
The ash content of the coal product.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="ash" type="CoalAttributePercentage"/>
moisture
Type:
CoalAttributePercentage, complex content
The moisture content of the coal product.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="moisture" type="CoalAttributePercentage"/>
SO2
Type:
CoalAttributePercentage, complex content
The sulfur/sulphur dioxide content of the coal product.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="SO2" type="CoalAttributePercentage"/>
sulfur
Type:
CoalAttributePercentage, complex content
The sulfur/sulphur content of the coal product.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="sulfur" type="CoalAttributePercentage"/>
volatile
Type:
CoalAttributePercentage, complex content
The volatile content of the coal product.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="volatile" type="CoalAttributePercentage"/>
