element <confirmationAcknowledgement> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
EventRequestAcknowledgement
Content:
complex, 3 attributes, 10 elements
Defined:
globally in fpml-confirmation-processes-5-8.xsd; see XML source
Used:
never

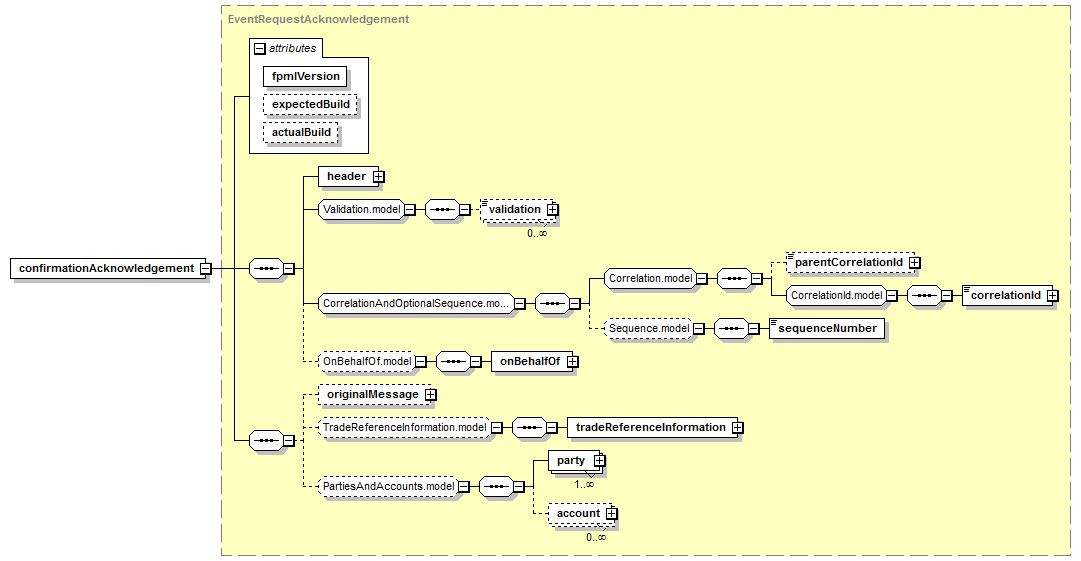

Content Model Diagram
XML Representation Summary
<confirmationAcknowledgement

 =
xsd:token
 =
xsd:positiveInteger
 =
"3"

>

Content:
</confirmationAcknowledgement>
Content model elements (10):
account,
correlationId,
header (defined in ResponseMessage complexType),
onBehalfOf (defined in OnBehalfOf.model group),
originalMessage (defined in EventRequestAcknowledgement complexType),
parentCorrelationId,
party (defined in PartiesAndAccounts.model group),
sequenceNumber (defined in Sequence.model group),
tradeReferenceInformation,
validation
Annotation
A business acknowledgement message to indicate that the previously sent message was sucessfully processed.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="confirmationAcknowledgement" type="EventRequestAcknowledgement"/>
