element <calculationAgentBusinessCenter> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
BusinessCenter
Content:
simple, 2 attributes
Defined:
locally within CalculationAgent.model group in fpml-doc-5-8.xsd; see XML source

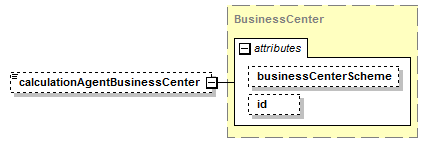

Content Model Diagram
XML Representation Summary
<calculationAgentBusinessCenter

 =
xsd:anyURI : "http://www.fpml.org/coding-scheme/business-center"
 =
xsd:ID

>

Content:
{ xsd:normalizedString }
</calculationAgentBusinessCenter>
Simple Content Detail:
MaxLength:
255
MinLength:
0
Included in content model of elements (18):
feeTrade,
newTrade,
oldTrade (defined in TradeChangeContent complexType),
oldTrade (in novation),
originalTrade (defined in OptionExercise complexType),
originalTrade (defined in TradeChangeBase complexType),
originalTrade (in optionExpiry defined in OptionsEvents.model group),
resultingTrade (defined in TradeChangeBase complexType),
resultingTrade (in physicalSettlement defined in OptionExercise complexType),
trade (defined in DataDocument complexType),
trade (defined in TradeAmendmentContent complexType),
trade (defined in TradeChangeContent complexType),
trade (defined in TradeOrInfo.model group),
trade (defined in TradePackage complexType),
trade (defined in TradingEvents.model group),
trade (in affectedTransactions),
trade (in approvalStatusNotification),
trade (in clearingStatusItem)
Annotation
The city in which the office through which ISDA Calculation Agent is acting for purposes of the transaction is located The short-form confirm for a trade that is executed under a Sovereign or Asia Pacific Master Confirmation Agreement ( MCA ), does not need to specify the Calculation Agent. However, the confirm does need to specify the Calculation Agent City. This is due to the fact that the MCA sets the value for Calculation Agent but does not set the value for Calculation Agent City.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="calculationAgentBusinessCenter" type="BusinessCenter"/>
