group "CurrencyAndDeterminationMethod.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
3 elements
Defined:
globally in fpml-eq-shared-5-8.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 2 locations

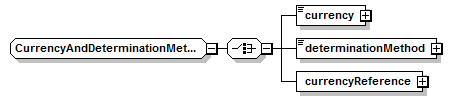

Content Model Diagram
Complex Content Model
currency | determinationMethod | currencyReference
Content Model Elements (3):
currency (defined in CurrencyAndDeterminationMethod.model group),
currencyReference,
determinationMethod (defined in CurrencyAndDeterminationMethod.model group)
Known Usage Locations
Annotation
A group containing return swap amount currency definition methods
XML Source (w/o annotations (4); see within schema source)
<xsd:group name="CurrencyAndDeterminationMethod.model">
<xsd:choice>
<xsd:element name="currency" type="IdentifiedCurrency"/>
<xsd:element name="determinationMethod" type="DeterminationMethod"/>
<xsd:element name="currencyReference" type="IdentifiedCurrencyReference"/>
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 3/3)
currency
Type:
IdentifiedCurrency, simple content
The currency in which an amount is denominated.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="currency" type="IdentifiedCurrency"/>
currencyReference
Type:
IdentifiedCurrencyReference, empty content
Reference to a currency defined elsewhere in the document
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="currencyReference" type="IdentifiedCurrencyReference"/>
determinationMethod
Type:
DeterminationMethod, simple content
Specifies the method according to which an amount or a date is determined.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="determinationMethod" type="DeterminationMethod"/>
