element <facilityFeePaymentGroup> (global abstract)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	NonRecurringFeePayment
Content:	complex, 12 elements
Abstract:	(may not be used directly in instance XML documents)
Subst.Gr:	may be substituted with 7 elements
Defined:	globally in fpml-loan-5-8.xsd; see XML source
Used:	at 8 locations

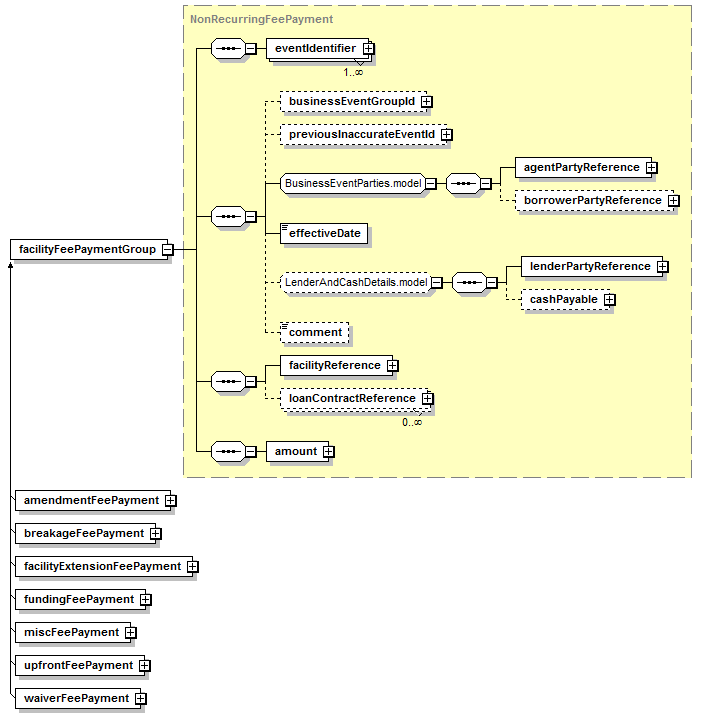

Content Model Diagram

XML Representation Summary

<facilityFeePaymentGroup>

Content:

eventIdentifier+, businessEventGroupId?, previousInaccurateEventId?, agentPartyReference, borrowerPartyReference?, effectiveDate, (lenderPartyReference, cashPayable?)?, comment?, facilityReference, loanContractReference*, amount

</facilityFeePaymentGroup>

Content model elements (12):

agentPartyReference (defined in BusinessEventParties.model group),

amount (defined in NonRecurringFeePayment complexType),

borrowerPartyReference (defined in BusinessEventParties.model group),

businessEventGroupId,

effectiveDate (defined in LoanEvent complexType),

eventIdentifier (defined in AbstractEventRequireId complexType),

facilityReference (defined in FacilityContractEvent complexType),

lenderPartyReference,

loanContractReference (defined in FacilityContractEvent complexType),

previousInaccurateEventId

Included in content model of elements (1):

nonRecurringFeePaymentNotification

May be substituted with elements (7):

amendmentFeePayment, breakageFeePayment, facilityExtensionFeePayment, fundingFeePayment, miscFeePayment, upfrontFeePayment, waiverFeePayment

Known Usage Locations

Within global complexTypes (1):

NonRecurringFeePaymentNotification [ref]
As head element of substitution group affiliations (7):

amendmentFeePayment, breakageFeePayment, facilityExtensionFeePayment, fundingFeePayment, miscFeePayment, upfrontFeePayment, waiverFeePayment

Annotation

Head of the substitution group for all facility fee payment events.

XML Source (w/o annotations (1); see within schema source)

<xsd:element abstract="true" name="facilityFeePaymentGroup" type="NonRecurringFeePayment"/>
