element <lcRenewal> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
LcRenewal
Content:
complex, 12 elements
Subst.Gr:
may substitute for element lcEventGroup
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Used:
never

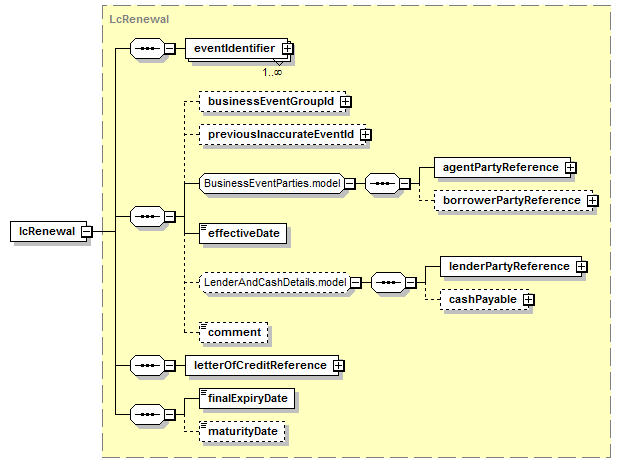

Content Model Diagram
XML Representation Summary
<lcRenewal>

Content:
</lcRenewal>
Content model elements (12):
agentPartyReference (defined in BusinessEventParties.model group),
borrowerPartyReference (defined in BusinessEventParties.model group),
businessEventGroupId,
cashPayable,
comment,
effectiveDate (defined in LoanEvent complexType),
eventIdentifier (defined in AbstractEventRequireId complexType),
finalExpiryDate (in lcRenewal),
lenderPartyReference,
letterOfCreditReference (defined in LcEvent complexType),
maturityDate (in lcRenewal),
previousInaccurateEventId
May be included in elements by substitutions (1):
lcNotification
XML Source (see within schema source)
<xsd:element name="lcRenewal" substitutionGroup="lcEventGroup" type="LcRenewal"/>
