element <facilityIdentifier> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
FacilityIdentifier
Content:
complex, 1 attribute, 2 elements
Defined:
locally within FacilityDetails.model group in fpml-loan-5-8.xsd; see XML source

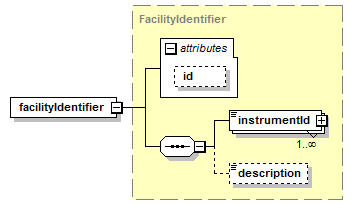

Content Model Diagram
XML Representation Summary
<facilityIdentifier

 =
xsd:ID

>

Content:
</facilityIdentifier>
Content model elements (2):
description (defined in IdentifiedAsset complexType),
instrumentId (defined in IdentifiedAsset complexType)
Included in content model of elements (14):
accrualOptionChangeNotification, accruingFeeChangeNotification, accruingFeePaymentNotification, accruingPikPaymentNotification, facilityNotification, facilityOutstandingsPositionStatement, facilityPositionStatement, facilityRateChangeNotification, lcNotification, loanContractNotification, nonRecurringFeePaymentNotification, prepaymentNotification, repaymentWithCANotification, rolloverNotification
Annotation
A deal summary structure.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="facilityIdentifier" type="FacilityIdentifier"/>
