element <accruingFeePaymentNotification> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
AccruingFeePaymentNotification
Content:
complex, 3 attributes, 14 elements
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Used:
never

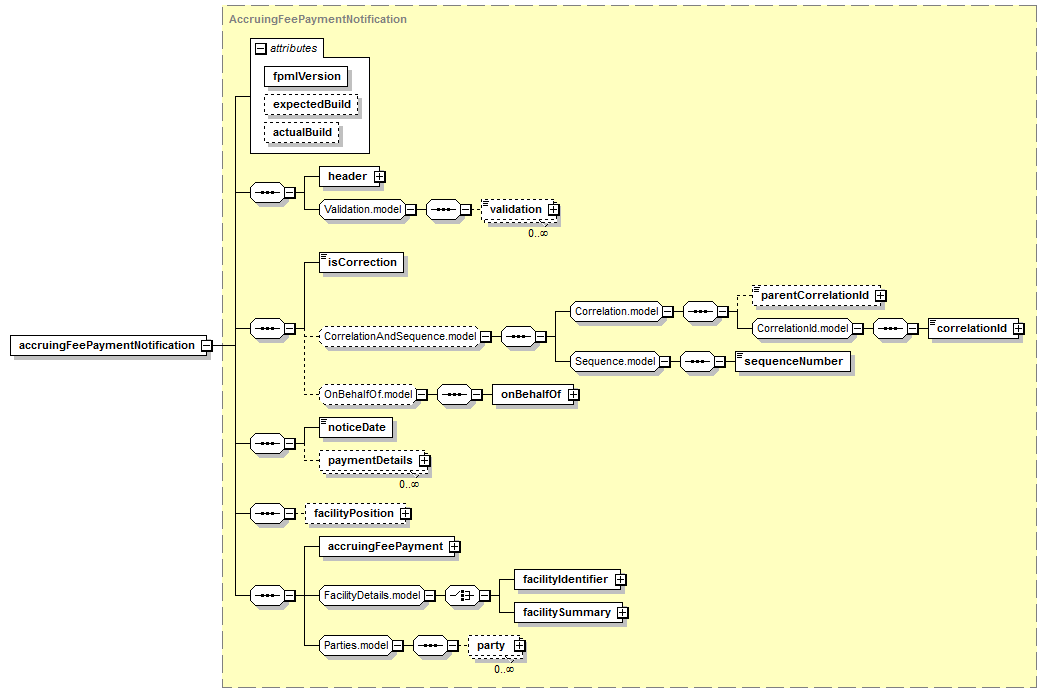

Content Model Diagram
XML Representation Summary
<accruingFeePaymentNotification

 =
xsd:token
 =
xsd:positiveInteger
 =
"3"

>

Content:
</accruingFeePaymentNotification>
Content model elements (14):
accruingFeePayment,
correlationId,
facilityIdentifier (defined in FacilityDetails.model group),
facilityPosition (defined in AbstractFacilityNotification complexType),
facilitySummary,
header (defined in RequestMessage complexType),
isCorrection,
noticeDate,
onBehalfOf (defined in OnBehalfOf.model group),
parentCorrelationId,
party (defined in Parties.model group),
paymentDetails (defined in AbstractServicingNotification complexType),
sequenceNumber (defined in Sequence.model group),
validation
XML Source (see within schema source)
<xsd:element name="accruingFeePaymentNotification" type="AccruingFeePaymentNotification"/>
