element <lcOption> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
LcOption
Content:
complex, 9 elements
Defined:
locally within FacilityOptionsFeesAndRates.model group in fpml-loan-5-8.xsd; see XML source

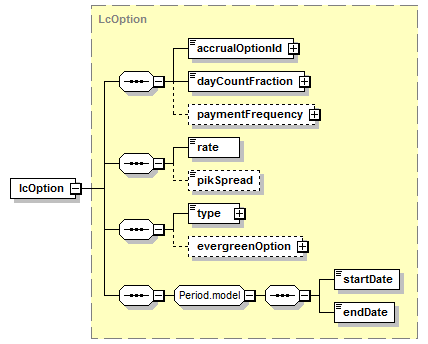

Content Model Diagram
XML Representation Summary
<lcOption>

Content:
</lcOption>
Content model elements (9):
dayCountFraction (defined in AccrualOptionBase complexType),
endDate (defined in Period.model group),
paymentFrequency (defined in AccrualOptionBase complexType),
pikSpread (defined in FixedRateOptionBase complexType),
rate (defined in FixedRateOptionBase complexType),
startDate (defined in Period.model group),
type (defined in LcOptionBase complexType)
Included in content model of elements (5):
delayedDraw, facilityGroup, letterOfCreditFacility, revolver, termLoan
Annotation
A description of all the letter of credit fee types which apply to the facility.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="lcOption" type="LcOption"/>
