element <facilityGroup> (global abstract)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
Facility
Content:
complex, 1 attribute, 26 elements
Abstract:
(may not be used directly in instance XML documents)
Subst.Gr:
may be substituted with 4 elements
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Used:
at 6 locations

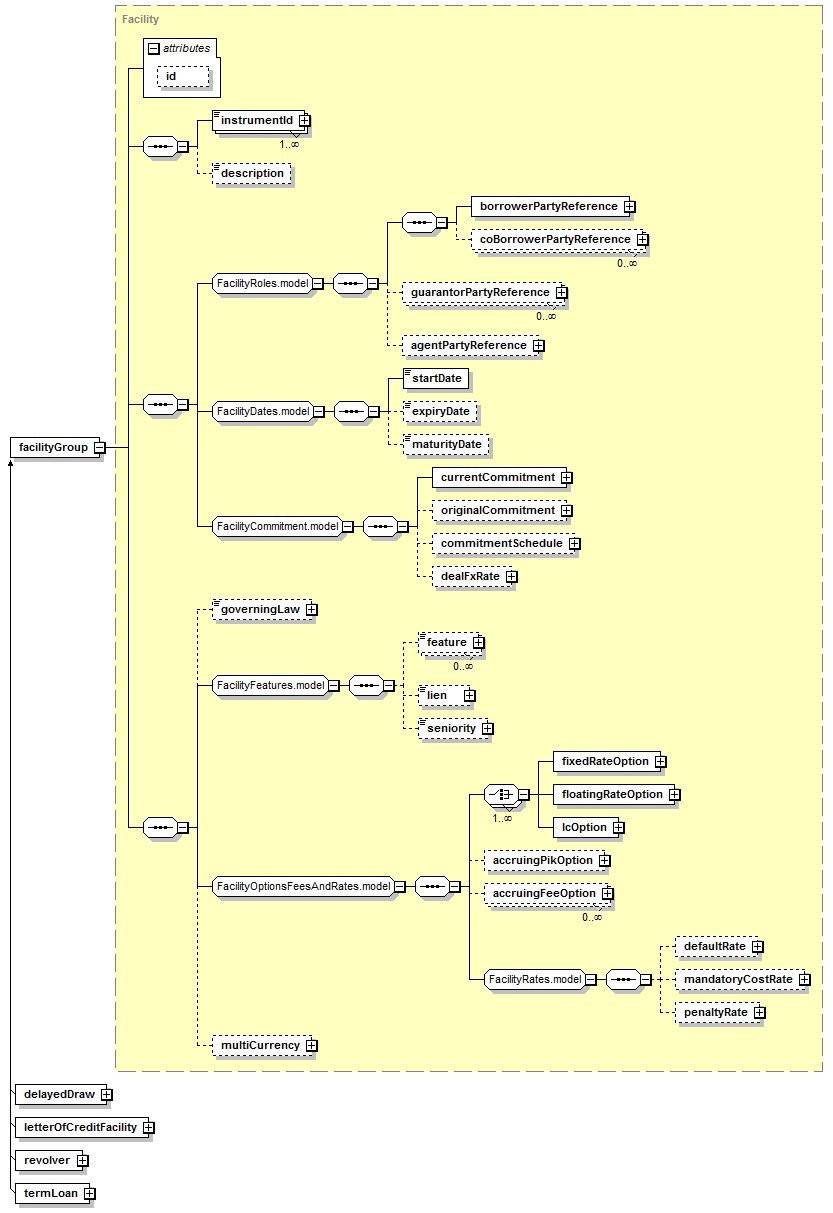

Content Model Diagram
XML Representation Summary
<facilityGroup

 =
xsd:ID

>

Content:
</facilityGroup>
Content model elements (26):
accruingFeeOption (defined in FacilityOptionsFeesAndRates.model group),
accruingPikOption (defined in FacilityOptionsFeesAndRates.model group),
agentPartyReference (defined in FacilityRoles.model group),
borrowerPartyReference (defined in FacilityRoles.model group),
coBorrowerPartyReference,
commitmentSchedule (defined in FacilityCommitment.model group),
currentCommitment,
dealFxRate,
defaultRate,
description (defined in IdentifiedAsset complexType),
expiryDate (defined in FacilityDates.model group),
feature (defined in FacilityFeatures.model group),
fixedRateOption (defined in FacilityOptionsFeesAndRates.model group),
floatingRateOption (defined in FacilityOptionsFeesAndRates.model group),
governingLaw (defined in Facility complexType),
guarantorPartyReference (defined in FacilityRoles.model group),
instrumentId (defined in IdentifiedAsset complexType),
lcOption (defined in FacilityOptionsFeesAndRates.model group),
lien (defined in FacilityFeatures.model group),
mandatoryCostRate (defined in FacilityRates.model group),
maturityDate (defined in FacilityDates.model group),
multiCurrency,
originalCommitment,
penaltyRate,
seniority (defined in FacilityFeatures.model group),
startDate (defined in FacilityDates.model group)
Included in content model of elements (2):
deal, facilityStatement
May be substituted with elements (4):
delayedDraw, letterOfCreditFacility, revolver, termLoan
Known Usage Locations
Annotation
Head of the substitution group for all facility types.
XML Source (w/o annotations (1); see within schema source)
<xsd:element abstract="true" name="facilityGroup" type="Facility"/>
