group "LoanContractDetails.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
3 elements
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 8 locations

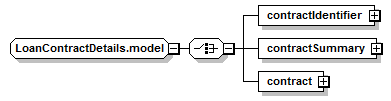

Content Model Diagram
Complex Content Model
contractIdentifier | contractSummary | contract
Content Model Elements (3):
Known Usage Locations
XML Source (w/o annotations (2); see within schema source)
<xsd:group name="LoanContractDetails.model">
<xsd:choice>
<xsd:element name="contractIdentifier" type="FacilityContractIdentifier"/>
<xsd:element name="contractSummary" type="LoanContractSummary"/>
<xsd:element name="contract" type="LoanContract"/>
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 3/3)
contract
Type:
LoanContract, complex content
XML Source (see within schema source)
<xsd:element name="contract" type="LoanContract"/>
contractIdentifier
Type:
FacilityContractIdentifier, complex content
A deal summary structure.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="contractIdentifier" type="FacilityContractIdentifier"/>
contractSummary
Type:
LoanContractSummary, complex content
A facility summary structure.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="contractSummary" type="LoanContractSummary"/>
