group "PeriodWithDays.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
3 elements
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:
at 4 locations

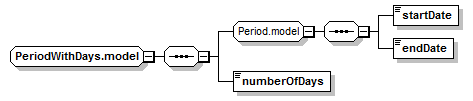

Content Model Diagram
Complex Content Model
startDate, endDate, numberOfDays
Content Model Elements (3):
endDate (defined in Period.model group),
startDate (defined in Period.model group)
Known Usage Locations
XML Source (w/o annotations (2); see within schema source)
<xsd:group name="PeriodWithDays.model">
<xsd:sequence>
<xsd:group ref="Period.model"/>
<xsd:element name="numberOfDays" type="xsd:decimal"/>
</xsd:sequence>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 1/3)
numberOfDays
Type:
xsd:decimal, predefined, simple content
The actual number of days represented within the 'period'. This takes into account counting the appropriate convention.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="numberOfDays" type="xsd:decimal"/>
