element <loan> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
Loan
Content:
complex, 1 attribute, 13 elements
Subst.Gr:
may substitute for element underlyingAsset
Defined:
globally in fpml-asset-5-8.xsd; see XML source
Used:
at 1 location

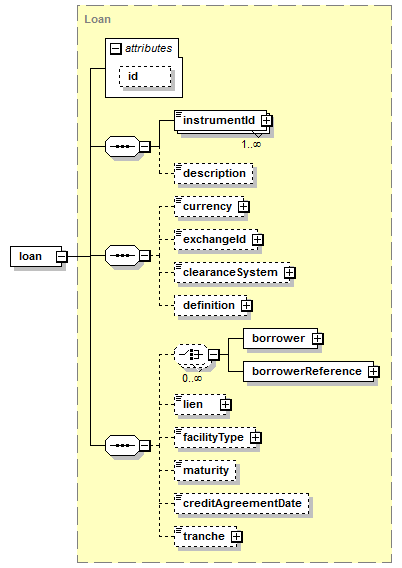

Content Model Diagram
XML Representation Summary
<loan

id
 =
xsd:ID

>

Content:
instrumentId+, description?, currency?, exchangeId?, clearanceSystem?, definition?, (borrower | borrowerReference)*, lien?, facilityType?, maturity?, creditAgreementDate?, tranche?
</loan>
Content model elements (13):
currency (defined in UnderlyingAsset complexType),
definition (defined in UnderlyingAsset complexType),
description (defined in IdentifiedAsset complexType),
exchangeId (defined in UnderlyingAsset complexType),
instrumentId (defined in IdentifiedAsset complexType),
lien (in loan),
Included in content model of elements (2):
May be included in elements by substitutions (6):
underlyer (defined in GenericProduct complexType)
Known Usage Locations
Annotation
Identifies a simple underlying asset that is a loan.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="loan" substitutionGroup="underlyingAsset" type="Loan"/>
