group "OptionExerciseAmount.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
10 elements
Defined:
globally in fpml-business-events-5-8.xsd; see XML source
Includes:
definitions of 10 elements
Used:
at 2 locations

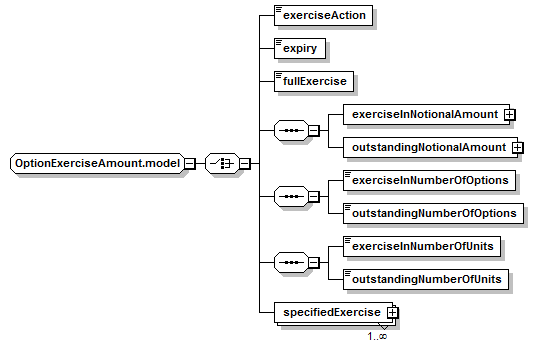

Content Model Diagram
Complex Content Model
exerciseAction | expiry | fullExercise | (exerciseInNotionalAmount, outstandingNotionalAmount) | (exerciseInNumberOfOptions, outstandingNumberOfOptions) | (exerciseInNumberOfUnits, outstandingNumberOfUnits) | specifiedExercise+
Content Model Elements (10):
exerciseAction,
exerciseInNotionalAmount (defined in OptionExerciseAmount.model group),
exerciseInNumberOfOptions (defined in OptionExerciseAmount.model group),
exerciseInNumberOfUnits (defined in OptionExerciseAmount.model group),
expiry (defined in OptionExerciseAmount.model group),
fullExercise,
outstandingNotionalAmount (defined in OptionExerciseAmount.model group),
outstandingNumberOfOptions (defined in OptionExerciseAmount.model group),
outstandingNumberOfUnits (defined in OptionExerciseAmount.model group),
specifiedExercise
Known Usage Locations
XML Source (w/o annotations (7); see within schema source)
<xsd:group name="OptionExerciseAmount.model">
<xsd:choice>
<xsd:element name="exerciseAction" type="ExerciseActionEnum"/>
<xsd:element name="expiry" type="xsd:boolean"/>
<xsd:element name="fullExercise" type="xsd:boolean"/>
<xsd:sequence>
<xsd:element name="exerciseInNotionalAmount" type="Money"/>
<xsd:element name="outstandingNotionalAmount" type="Money"/>
</xsd:sequence>
<xsd:sequence>
<xsd:element name="exerciseInNumberOfOptions" type="xsd:decimal"/>
<xsd:element name="outstandingNumberOfOptions" type="xsd:decimal"/>
</xsd:sequence>
<xsd:sequence>
<xsd:element name="exerciseInNumberOfUnits" type="xsd:decimal"/>
<xsd:element name="outstandingNumberOfUnits" type="xsd:decimal"/>
</xsd:sequence>
<xsd:element maxOccurs="unbounded" name="specifiedExercise" type="OptionExerciseAmounts"/>
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 10/10)
exerciseAction
Type:
ExerciseActionEnum, simple content
Simple Content
enumeration of xsd:token
Enumeration:
"FullExercise"
 -
The option was or is to be exercised fully.
See:  http://www.FpML.org
"PartialExercise"
 -
The option was or is to be exercised partially. The amount of the exercise is specified elsewhere in the document than in the exercise amount; for example, in the case of a physical exercise the size of the resulting trade is the same as the amount that was exercise, so if it is specified it is not necessary to specify the amount of the partial exercise.
See:  http://www.FpML.org
"Abandon"
 -
The option was or is to be allowed to expire without being exercised, i.e. it is being abandoned.
See:  http://www.FpML.org
minLength:
0
XML Source (see within schema source)
<xsd:element name="exerciseAction" type="ExerciseActionEnum"/>
exerciseInNotionalAmount
Type:
Money, complex content
Specifies the fixed amount by which the option should be exercised expressed as notional amount.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="exerciseInNotionalAmount" type="Money"/>
exerciseInNumberOfOptions
Type:
xsd:decimal, predefined, simple content
Specifies the fixed amount by which the option should be exercised expressed as number of options.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="exerciseInNumberOfOptions" type="xsd:decimal"/>
exerciseInNumberOfUnits
Type:
xsd:decimal, predefined, simple content
Specifies the fixed amount by which the option should be exercised express as number of units.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="exerciseInNumberOfUnits" type="xsd:decimal"/>
expiry
Type:
xsd:boolean, predefined, simple content
XML Source (see within schema source)
<xsd:element name="expiry" type="xsd:boolean"/>
fullExercise
Type:
xsd:boolean, predefined, simple content
XML Source (see within schema source)
<xsd:element name="fullExercise" type="xsd:boolean"/>
outstandingNotionalAmount
Type:
Money, complex content
Specifies the Notional amount after the Change
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="outstandingNotionalAmount" type="Money"/>
outstandingNumberOfOptions
Type:
xsd:decimal, predefined, simple content
Specifies the Number of Options after the Change.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="outstandingNumberOfOptions" type="xsd:decimal"/>
outstandingNumberOfUnits
Type:
xsd:decimal, predefined, simple content
Specifies the Number of Units
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="outstandingNumberOfUnits" type="xsd:decimal"/>
specifiedExercise
Type:
OptionExerciseAmounts, complex content
Specifies the Number of Units
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="specifiedExercise" type="OptionExerciseAmounts"/>
