group "PostTradeEvents.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
7 elements
Defined:
globally in fpml-business-events-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:
never

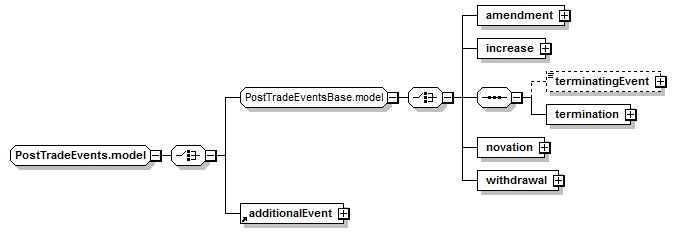

Content Model Diagram
Complex Content Model
amendment | increase | (terminatingEvent?, termination) | novation | withdrawal | additionalEvent
Content Model Elements (7):
additionalEvent,
amendment (defined in PostTradeEventsBase.model group),
increase,
novation,
terminatingEvent (defined in PostTradeEventsBase.model group),
termination (defined in PostTradeEventsBase.model group),
withdrawal
Annotation
Choice between amendment, increase, termination, novation, and additional event.
XML Source (w/o annotations (1); see within schema source)
<xsd:group name="PostTradeEvents.model">
<xsd:choice>
<xsd:group ref="PostTradeEventsBase.model"/>
<xsd:element ref="additionalEvent"/>
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 1/7)
additionalEvent
Type:
AdditionalEvent, complex content
Abstract:
(may not be used directly in instance XML documents)
XML Source (see within schema source)
<xsd:element ref="additionalEvent"/>
