group "TradingEvents.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
4 elements
Defined:
globally in fpml-business-events-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:
at 9 locations

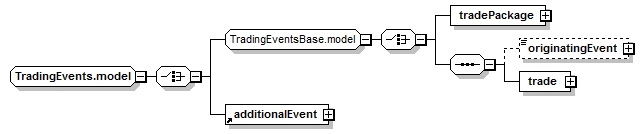

Content Model Diagram
Complex Content Model
tradePackage | (originatingEvent?, trade) | additionalEvent
Content Model Elements (4):
trade (defined in TradingEventsBase.model group),
Known Usage Locations
Annotation
Choice between a trade, a post-trade event, or an additional event.
XML Source (w/o annotations (1); see within schema source)
<xsd:group name="TradingEvents.model">
<xsd:choice>
<xsd:group ref="TradingEventsBase.model"/>
<xsd:element ref="additionalEvent"/>
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 1/4)
additionalEvent
Type:
AdditionalEvent, complex content
Abstract:
(may not be used directly in instance XML documents)
XML Source (see within schema source)
<xsd:element ref="additionalEvent"/>
