element <consentRefused> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
ConsentRefused
Content:
complex, 3 attributes, 25 elements
Defined:
globally in fpml-confirmation-processes-5-8.xsd; see XML source
Used:
never

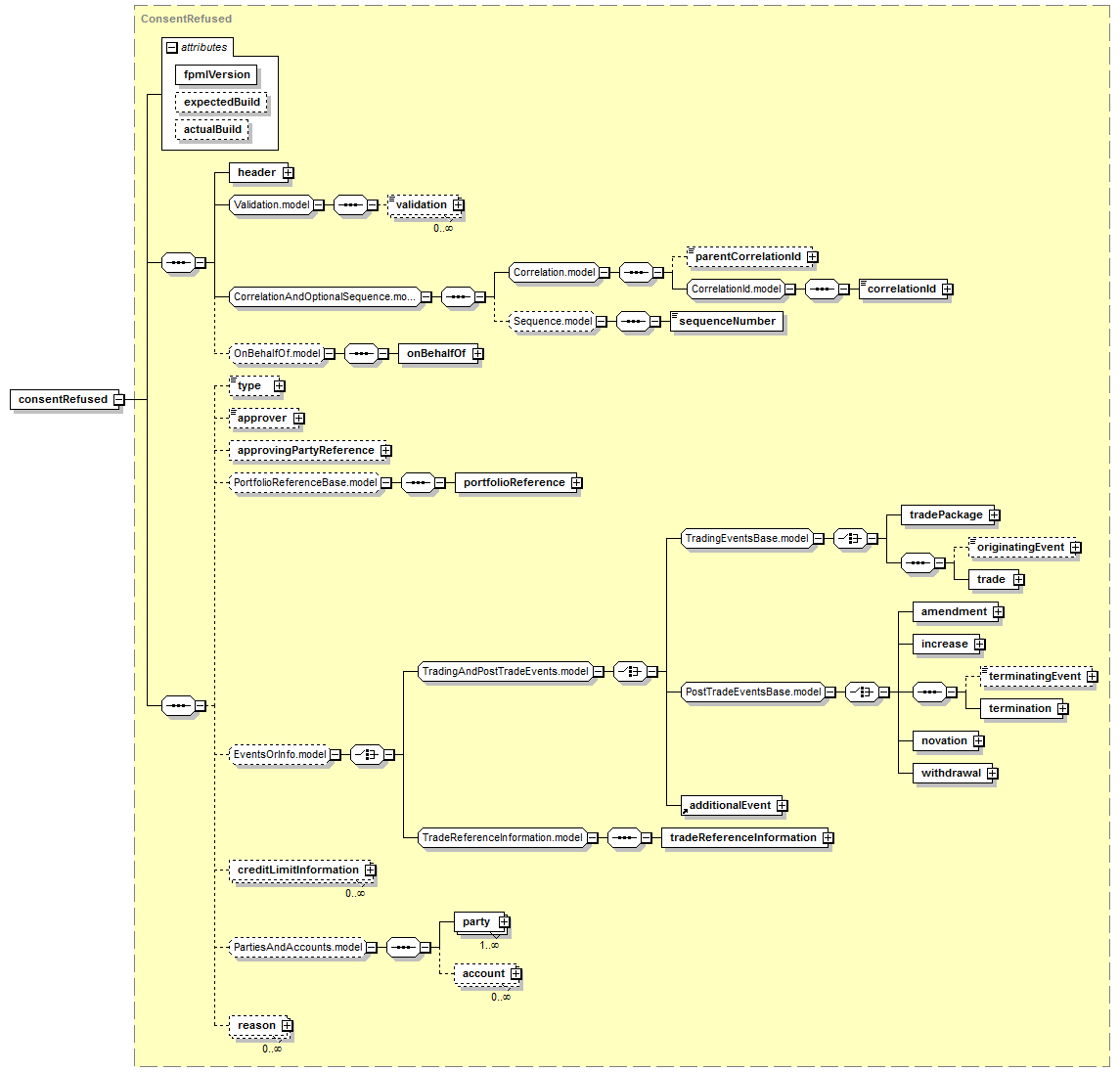

Content Model Diagram
XML Representation Summary
<consentRefused

fpmlVersion
 =
xsd:token
expectedBuild
 =
xsd:positiveInteger
actualBuild
 =
"9"

>

Content:
header, validation*, parentCorrelationId?, correlationId, sequenceNumber?, onBehalfOf?, type?, approver?, approvingPartyReference?, portfolioReference?, (tradePackage | (originatingEvent?, trade) | amendment | increase | (terminatingEvent?, termination) | novation | withdrawal | additionalEvent | tradeReferenceInformation)?, creditLimitInformation*, (party+, account*)?, reason*
</consentRefused>
Content model elements (25):
account,
additionalEvent,
amendment (defined in PostTradeEventsBase.model group),
approver (in consentRefused),
approvingPartyReference (in consentRefused),
correlationId,
creditLimitInformation (in consentRefused),
header (defined in ResponseMessage complexType),
increase,
novation,
onBehalfOf (defined in OnBehalfOf.model group),
originatingEvent (defined in TradingEventsBase.model group),
parentCorrelationId,
party (defined in PartiesAndAccounts.model group),
portfolioReference (defined in PortfolioReferenceBase.model group),
reason (in consentRefused),
sequenceNumber (defined in Sequence.model group),
terminatingEvent (defined in PostTradeEventsBase.model group),
termination (defined in PostTradeEventsBase.model group),
trade (defined in TradingEventsBase.model group),
tradePackage (defined in TradingEventsBase.model group),
tradeReferenceInformation,
type (in consentRefused),
validation,
withdrawal
XML Source (see within schema source)
<xsd:element name="consentRefused" type="ConsentRefused"/>
