element <relatedParty> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
RelatedParty
Content:
complex, 4 elements
Defined:
locally within AllocationContent.model group in fpml-doc-5-8.xsd; see XML source

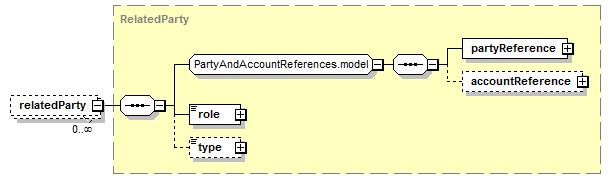

Content Model Diagram
XML Representation Summary
<relatedParty>

Content:
partyReference, accountReference?, role, type?
</relatedParty>
Content model elements (4):
accountReference (defined in PartyAndAccountReferences.model group),
partyReference (defined in PartyAndAccountReferences.model group),
role (defined in RelatedParty complexType),
type (defined in RelatedParty complexType)
Included in content model of elements (1):
allocation
Annotation
Specifies any relevant parties to the allocation which should be referenced.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="relatedParty" type="RelatedParty"/>
