group "AllocationContent.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
5 elements
Defined:
globally in fpml-doc-5-8.xsd; see XML source
Includes:
definitions of 5 elements
Used:
at 1 location

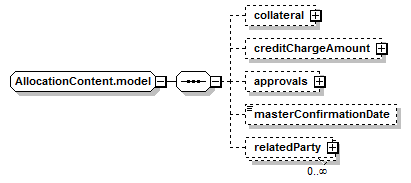

Content Model Diagram
Complex Content Model
collateral?, creditChargeAmount?, approvals?, masterConfirmationDate?, relatedParty*
Content Model Elements (5):
Known Usage Locations
XML Source (w/o annotations (5); see within schema source)
<xsd:group name="AllocationContent.model">
<xsd:sequence>
<xsd:element minOccurs="0" name="collateral" type="Collateral"/>
<xsd:element minOccurs="0" name="creditChargeAmount" type="Money"/>
<xsd:element minOccurs="0" name="approvals" type="Approvals"/>
<xsd:element minOccurs="0" name="masterConfirmationDate" type="xsd:date"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="relatedParty" type="RelatedParty"/>
</xsd:sequence>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 5/5)
approvals
Type:
Approvals, complex content
A container for approval states in the workflow.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="approvals" type="Approvals"/>
collateral
Type:
Collateral, complex content
The sum that must be posted upfront to collateralize against counterparty credit risk.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="collateral" type="Collateral"/>
creditChargeAmount
Type:
Money, complex content
Special credit fee assessed to certain institutions.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="creditChargeAmount" type="Money"/>
masterConfirmationDate
Type:
xsd:date, predefined, simple content
The date of the confirmation executed between the parties and intended to govern the allocated trade between those parties.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="masterConfirmationDate" type="xsd:date"/>
relatedParty
Type:
RelatedParty, complex content
Specifies any relevant parties to the allocation which should be referenced.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="relatedParty" type="RelatedParty"/>
