group "EquityExpiration.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
3 elements
Defined:
globally in fpml-eqd-5-8.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 3 locations

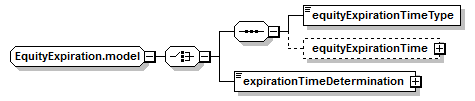

Content Model Diagram
Complex Content Model
(equityExpirationTimeType, equityExpirationTime?) | expirationTimeDetermination
Content Model Elements (3):
equityExpirationTime, equityExpirationTimeType, expirationTimeDetermination
Known Usage Locations
Annotation
Choice between expiration expressed as symbolic and optional literal time, or using a determination method.
XML Source (w/o annotations (4); see within schema source)
<xsd:group name="EquityExpiration.model">
<xsd:choice>
<xsd:sequence>
<xsd:element name="equityExpirationTimeType" type="TimeTypeEnum"/>
<xsd:element minOccurs="0" name="equityExpirationTime" type="BusinessCenterTime"/>
</xsd:sequence>
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 3/3)
equityExpirationTime
Type:
BusinessCenterTime, complex content
The specific time of day at which the equity option expires.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="equityExpirationTime" type="BusinessCenterTime"/>
equityExpirationTimeType
Type:
TimeTypeEnum, simple content
The time of day at which the equity option expires, for example the official closing time of the exchange.
Simple Content
enumeration of xsd:token
Enumeration:
"Close"
 -
The official closing time of the exchange on the valuation date.
See:  http://www.FpML.org
"Open"
 -
The official opening time of the exchange on the valuation date.
See:  http://www.FpML.org
"OSP"
 -
The time at which the official settlement price is determined.
See:  http://www.FpML.org
"SpecificTime"
 -
The time specified in the element equityExpirationTime or valuationTime (as appropriate)
See:  http://www.FpML.org
"XETRA"
 -
The time at which the official settlement price (following the auction by the exchange) is determined by the exchange.
See:  http://www.FpML.org
"DerivativesClose"
 -
The official closing time of the derivatives exchange on which a derivative contract is listed on that security underlyer.
See:  http://www.FpML.org
"AsSpecifiedInMasterConfirmation"
 -
The time is determined as provided in the relevant Master Confirmation.
See:  http://www.FpML.org
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="equityExpirationTimeType" type="TimeTypeEnum"/>
expirationTimeDetermination
Type:
DeterminationMethod, simple content
Expiration time determination method.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
