element <settlementPeriods> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
GenericCommodityDeliveryPeriod
Content:
complex, 3 elements
Defined:
locally within GenericCommodityAttributes.model group in fpml-generic-5-8.xsd; see XML source

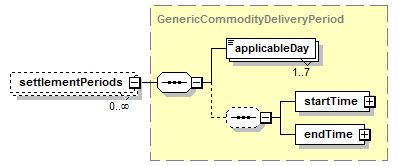

Content Model Diagram
XML Representation Summary
<settlementPeriods>

Content:
applicableDay[1..7], (startTime, endTime)?
</settlementPeriods>
Content model elements (3):
applicableDay (in settlementPeriods defined in GenericCommodityAttributes.model group),
endTime (in settlementPeriods defined in GenericCommodityAttributes.model group),
startTime (in settlementPeriods defined in GenericCommodityAttributes.model group)
Included in content model of elements (2):
genericProduct, nonSchemaProduct
Annotation
Specifies the delivery time periods (normally used for electricity swaps).
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="settlementPeriods" type="GenericCommodityDeliveryPeriod"/>
