element <originalCommitment> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
MoneyWithParticipantShare
Content:
complex, 1 attribute, 3 elements
Defined:
locally within FacilityCommitment.model group in fpml-loan-5-8.xsd; see XML source

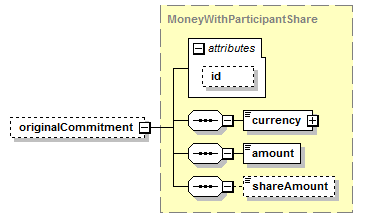

Content Model Diagram
XML Representation Summary
<originalCommitment

id
 =
xsd:ID

>

Content:
currency, amount, shareAmount?
</originalCommitment>
Content model elements (3):
amount (defined in NonNegativeMoney complexType),
currency (defined in MoneyBase complexType),
Included in content model of elements (6):
delayedDraw, facilityGroup, facilitySummary, letterOfCreditFacility, revolver, termLoan
Annotation
The original global commitment amount. This defines the limit, as of the start date, against which the borrower may draw funds.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="originalCommitment" type="MoneyWithParticipantShare"/>
