element <facilityGroup> (global abstract)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	Facility
Content:	complex, 1 attribute, 27 elements
Abstract:	(may not be used directly in instance XML documents)
Subst.Gr:	may be substituted with 4 elements
Defined:	globally in fpml-loan-5-8.xsd; see XML source
Used:	at 6 locations

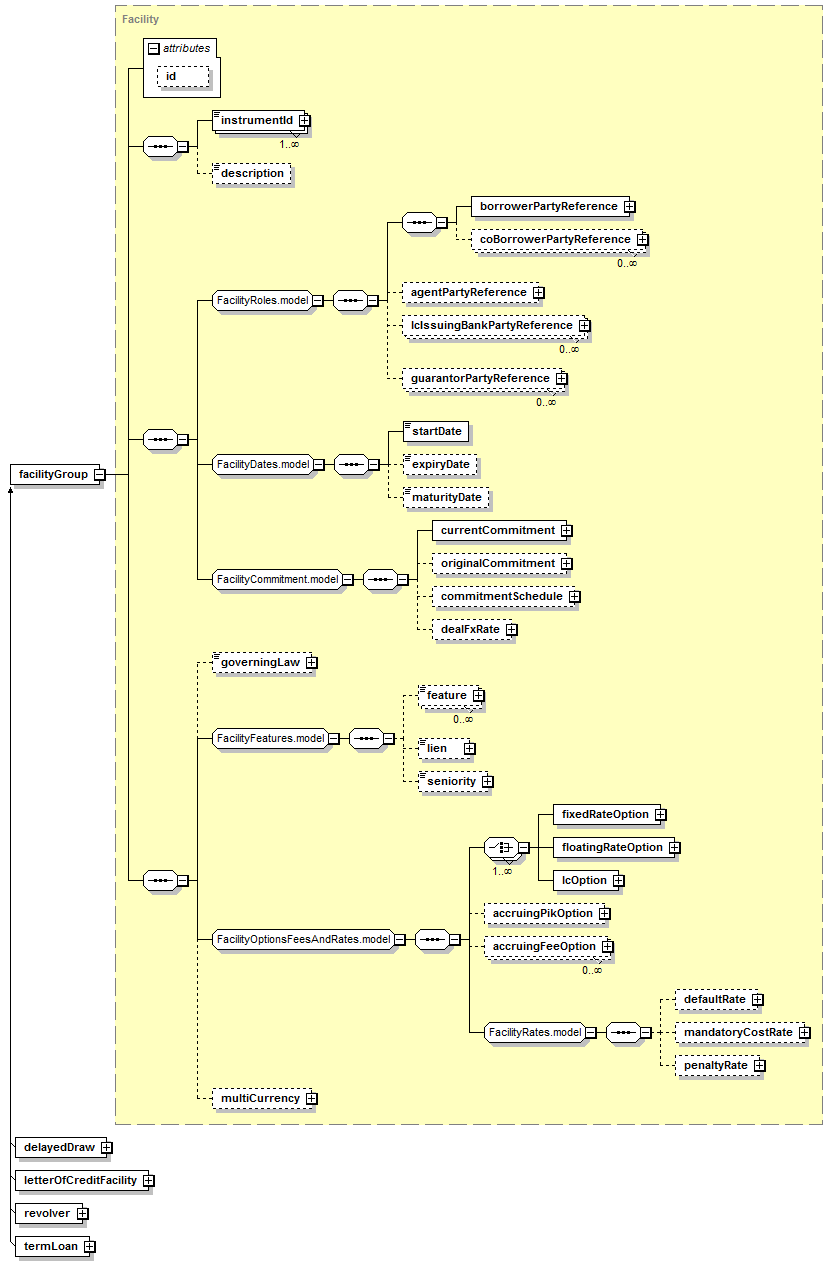

Content Model Diagram

XML Representation Summary

<facilityGroup

xsd:ID

Content:

</facilityGroup>

Content model elements (27):

description (defined in IdentifiedAsset complexType),

governingLaw (defined in Facility complexType),

Included in content model of elements (2):

May be substituted with elements (4):

Known Usage Locations

Within global complexTypes (2):

Deal [ref], FacilityStatement [ref]
As head element of substitution group affiliations (4):

delayedDraw, letterOfCreditFacility, revolver, termLoan

Annotation

Head of the substitution group for all facility types.

XML Source (w/o annotations (1); see within schema source)

<xsd:element abstract="true" name="facilityGroup" type="Facility"/>
