group "FacilityDates.model"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	3 elements
Defined:	globally in fpml-loan-5-8.xsd; see XML source
Includes:	definitions of 3 elements
Used:	at 1 location

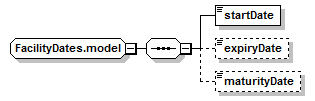

Content Model Diagram

Complex Content Model

Content Model Elements (3):

Known Usage Locations

Annotation

All relevant dates related to a specific facility.

XML Source (w/o annotations (4); see within schema source)

<xsd:sequence>

<xsd:element name="startDate" type="xsd:date"/>

<xsd:element minOccurs="0" name="expiryDate" type="xsd:date"/>

<xsd:element minOccurs="0" name="maturityDate" type="xsd:date"/>

</xsd:sequence>

</xsd:group>

Content Element Detail (all declarations; defined within this component only; 3/3)

Type:

xsd:date, predefined, simple content

The latest date that a drawdown can be made effective against the facility.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="expiryDate" type="xsd:date"/>

Type:

xsd:date, predefined, simple content

The maturity date of the facility.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="maturityDate" type="xsd:date"/>

Type:

xsd:date, predefined, simple content

The start date of the facility.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="startDate" type="xsd:date"/>
