group "CorrelationAndOptionalSequence.model"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	3 elements
Defined:	globally in fpml-msg-5-8.xsd; see XML source
Used:	at 3 locations

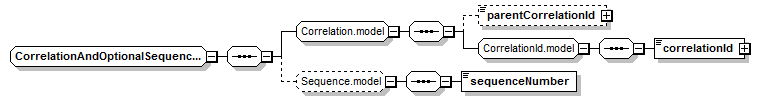

Content Model Diagram

Complex Content Model

parentCorrelationId?, correlationId, sequenceNumber?

Content Model Elements (3):

correlationId,

parentCorrelationId,

sequenceNumber (defined in Sequence.model group)

Known Usage Locations

In definitions of global complexTypes (3):

Exception, NotificationMessage, ResponseMessage

Annotation

A model group defining the full messsage correlation mechanism, but with optional sequence. Please note that for reports in Reporting view, usage of the correlation and sequence model is not well defined in the standard an may be deprecated from future versions of the standard. Use the ReportReference structure to identify report instances and section numbers if a report must be divided into chunks.

XML Source (w/o annotations (1); see within schema source)

<xsd:group name="CorrelationAndOptionalSequence.model">

<xsd:sequence>

<xsd:group ref="Correlation.model"/>

<xsd:group minOccurs="0" ref="Sequence.model"/>

</xsd:sequence>

</xsd:group>
