group "CorrelationAndSequence.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
3 elements
Defined:
globally in fpml-msg-5-8.xsd; see XML source
Used:
at 2 locations

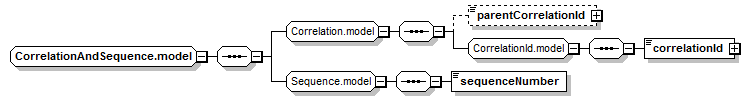

Content Model Diagram
Complex Content Model
parentCorrelationId?, correlationId, sequenceNumber
Content Model Elements (3):
sequenceNumber (defined in Sequence.model group)
Known Usage Locations
Annotation
A model group defining the full messsage correlation mechanism. The correlation ID is used to link followup corrections and retractions to the original request, and to help identify which replies link to which requests. (The "inReplyTo" element may also be used for this purpose, but it contains a message identifier rather than a business object identifier.) The sequence ID is used to establish an ordering between multiple messages related to the same business object (identified by the same correlation identifier). It contains a value the must ascend (possibly with gaps) messages on the same correlation ID.
XML Source (w/o annotations (1); see within schema source)
<xsd:group name="CorrelationAndSequence.model">
<xsd:sequence>
<xsd:group ref="Correlation.model"/>
<xsd:group ref="Sequence.model"/>
</xsd:sequence>
</xsd:group>
