group "OptionFeature.model"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	4 elements
Defined:	globally in fpml-option-shared-5-8.xsd; see XML source
Includes:	definitions of 4 elements
Used:	at 1 location

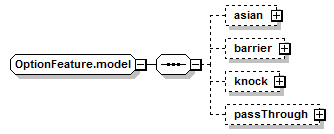

Content Model Diagram

Complex Content Model

Content Model Elements (4):

asian (in feature defined in OptionBaseExtended complexType),

knock (in feature defined in OptionBaseExtended complexType),

Known Usage Locations

Annotation

A model group containing Option Base Feature Elements.

XML Source (w/o annotations (5); see within schema source)

<xsd:sequence>

<xsd:element minOccurs="0" name="asian" type="Asian"/>

<xsd:element minOccurs="0" name="barrier" type="Barrier"/>

<xsd:element minOccurs="0" name="knock" type="Knock"/>

<xsd:element minOccurs="0" name="passThrough" type="PassThrough"/>

</xsd:sequence>

</xsd:group>

Content Element Detail (all declarations; defined within this component only; 4/4)

Type:

Asian, complex content

An option where and average price is taken on valuation.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="asian" type="Asian"/>

Type:

Barrier, complex content

An option with a barrier feature.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="barrier" type="Barrier"/>

Type:

Knock, complex content

A knock feature.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="knock" type="Knock"/>

Type:

PassThrough, complex content

Pass through payments from the underlyer, such as dividends.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="passThrough" type="PassThrough"/>
