element <businessUnit> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	BusinessUnit
Content:	complex, 1 attribute, 4 elements
Defined:	locally within Party.model group in fpml-shared-5-8.xsd; see XML source

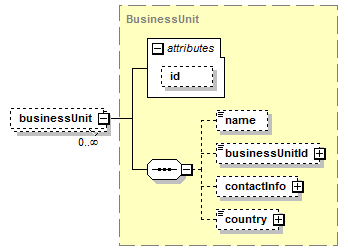

Content Model Diagram

XML Representation Summary

<businessUnit

xsd:ID

Content:

name?, businessUnitId?, contactInfo?, country?

</businessUnit>

Content model elements (4):

businessUnitId,

contactInfo (in businessUnit),

country (in businessUnit),

name (in businessUnit)

Included in content model of elements (41):

party (defined in PartiesAndAccounts.model group),

party (in accrualOptionChangeNotification),

party (in accrualOptionChangeNotificationRetracted),

party (in accruingFeeChangeNotification),

party (in accruingFeeChangeNotificationRetracted),

party (in accruingFeePaymentNotification),

party (in accruingFeePaymentNotificationRetracted),

party (in accruingPikPaymentNotification),

party (in accruingPikPaymentNotificationRetracted),

party (in creditEventNotification),

party (in creditEventNotificationRetracted),

party (in dealStatement),

party (in facilityNotification),

party (in facilityNotificationRetracted),

party (in facilityOutstandingsPositionStatement),

party (in facilityPositionStatement),

party (in facilityRateChangeNotification),

party (in facilityRateChangeNotificationRetracted),

party (in facilityStatement),

party (in lcNotification),

party (in lcNotificationRetracted),

party (in loanContractNotification),

party (in loanContractNotificationRetracted),

party (in nonRecurringFeePaymentNotification),

party (in nonRecurringFeePaymentNotificationRetracted),

party (in outstandingContractsStatement),

party (in prepaymentNotification),

party (in prepaymentNotificationRetracted),

party (in rolloverNotification),

party (in rolloverNotificationRetracted),

party (in rolloverNotificationRetracted)

Annotation

Optional organization unit information used to describe the organization units (e.g. trading desks) involved in a transaction or business process .

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="0" name="businessUnit" type="BusinessUnit"/>
