element <loanAllocationEventGroup> (global abstract)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
AbstractLoanAllocationEvent
Content:
complex, 7 elements
Abstract:
(may not be used directly in instance XML documents)
Subst.Gr:
may be substituted with 7 elements
Defined:
globally in fpml-loan-5-11.xsd; see XML source
Used:
at 8 locations

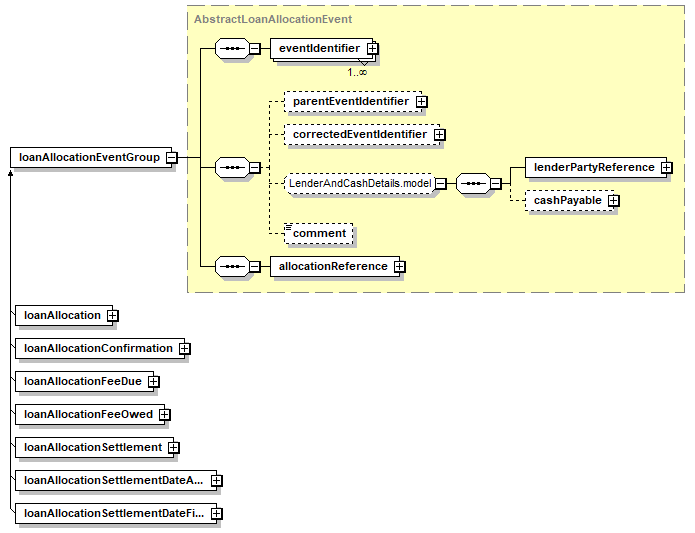

Content Model Diagram
XML Representation Summary
<loanAllocationEventGroup>

Content:
eventIdentifier+, parentEventIdentifier?, correctedEventIdentifier?, (lenderPartyReference, cashPayable?)?, comment?, allocationReference
</loanAllocationEventGroup>
Content model elements (7):
allocationReference (defined in AbstractLoanAllocationEvent complexType),
cashPayable,
comment (defined in AbstractLoanEvent complexType),
correctedEventIdentifier,
eventIdentifier (defined in AbstractEventRequireId complexType),
lenderPartyReference,
parentEventIdentifier
Included in content model of elements (1):
loanAllocationNotification
May be substituted with elements (7):
loanAllocation, loanAllocationConfirmation, loanAllocationFeeDue, loanAllocationFeeOwed, loanAllocationSettlement, loanAllocationSettlementDateAvailability, loanAllocationSettlementDateFinalization
Known Usage Locations
Annotation
Head of the substitution group for all loan trade allocation events.
XML Source (w/o annotations (1); see within schema source)
<xsd:element abstract="true" name="loanAllocationEventGroup" type="AbstractLoanAllocationEvent"/>
