element <loanAllocationFeeOwed> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
LoanAllocationTransferFeeOwedEvent
Content:
complex, 10 elements
Subst.Gr:
may substitute for element loanAllocationEventGroup
Defined:
globally in fpml-loan-5-11.xsd; see XML source
Used:
never

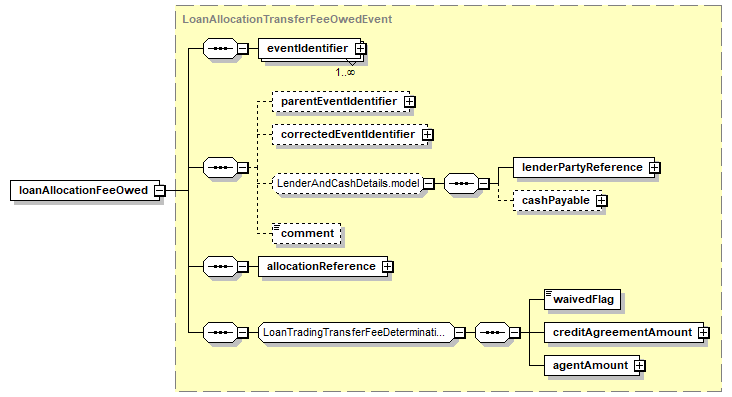

Content Model Diagram
XML Representation Summary
<loanAllocationFeeOwed>

Content:
eventIdentifier+, parentEventIdentifier?, correctedEventIdentifier?, (lenderPartyReference, cashPayable?)?, comment?, allocationReference, waivedFlag, creditAgreementAmount, agentAmount
</loanAllocationFeeOwed>
Content model elements (10):
agentAmount,
allocationReference (defined in AbstractLoanAllocationEvent complexType),
cashPayable,
comment (defined in AbstractLoanEvent complexType),
correctedEventIdentifier,
creditAgreementAmount,
eventIdentifier (defined in AbstractEventRequireId complexType),
lenderPartyReference,
parentEventIdentifier,
waivedFlag
May be included in elements by substitutions (1):
loanAllocationNotification
XML Source (see within schema source)
<xsd:element name="loanAllocationFeeOwed" substitutionGroup="loanAllocationEventGroup" type="LoanAllocationTransferFeeOwedEvent"/>
