group "CommodityFixedPrice.model" | XML Schema Documentation

group "CommodityFixedPrice.model"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	6 elements
Defined:	globally in fpml-com-5-11.xsd; see XML source
Includes:	definitions of 6 elements
Used:	at 1 location

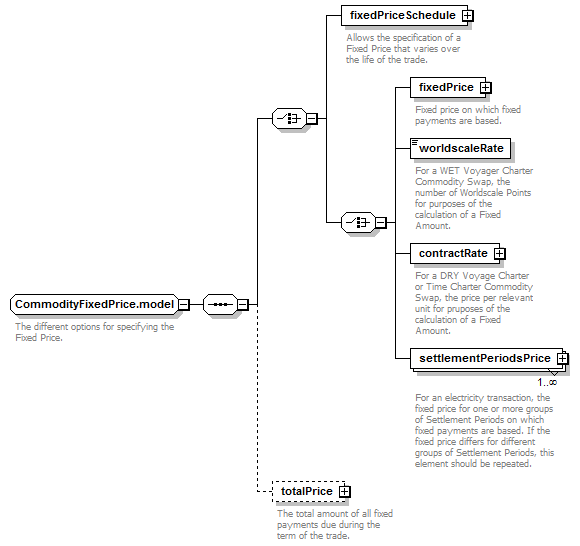

Content Model Diagram

Complex Content Model

(fixedPriceSchedule | fixedPrice | worldscaleRate | contractRate | settlementPeriodsPrice+), totalPrice?

Content Model Elements (6):

fixedPrice (in fixedLeg),

fixedPriceSchedule,

settlementPeriodsPrice,

totalPrice (in fixedLeg),

Known Usage Locations

In definitions of global complexTypes (1):

FixedPriceLeg

Annotation

The different options for specifying the Fixed Price.

XML Source (w/o annotations (7); see within schema source)

<xsd:group name="CommodityFixedPrice.model">

<xsd:sequence>

<xsd:choice>

<xsd:element name="fixedPriceSchedule" type="CommodityFixedPriceSchedule"/>

<xsd:choice>

<xsd:element name="fixedPrice" type="FixedPrice"/>

<xsd:element name="worldscaleRate" type="xsd:decimal"/>

<xsd:element name="contractRate" type="NonNegativeMoney"/>

<xsd:element maxOccurs="unbounded" name="settlementPeriodsPrice" type="SettlementPeriodsFixedPrice"/>

</xsd:choice>

</xsd:choice>

<xsd:element minOccurs="0" name="totalPrice" type="NonNegativeMoney"/>

</xsd:sequence>

</xsd:group>

Content Element Detail (all declarations; defined within this component only; 6/6)

Type:

NonNegativeMoney, complex content

For a DRY Voyage Charter or Time Charter Commodity Swap, the price per relevant unit for pruposes of the calculation of a Fixed Amount.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="contractRate" type="NonNegativeMoney"/>

Type:

FixedPrice, complex content

Fixed price on which fixed payments are based.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="fixedPrice" type="FixedPrice"/>

fixedPriceSchedule

Type:

CommodityFixedPriceSchedule, complex content

Allows the specification of a Fixed Price that varies over the life of the trade.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="fixedPriceSchedule" type="CommodityFixedPriceSchedule"/>

settlementPeriodsPrice

Type:

SettlementPeriodsFixedPrice, complex content

For an electricity transaction, the fixed price for one or more groups of Settlement Periods on which fixed payments are based. If the fixed price differs for different groups of Settlement Periods, this element should be repeated.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" name="settlementPeriodsPrice" type="SettlementPeriodsFixedPrice"/>

Type:

NonNegativeMoney, complex content

The total amount of all fixed payments due during the term of the trade.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="totalPrice" type="NonNegativeMoney"/>

Type:

xsd:decimal, predefined, simple content

For a WET Voyager Charter Commodity Swap, the number of Worldscale Points for purposes of the calculation of a Fixed Amount.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="worldscaleRate" type="xsd:decimal"/>
