element <settlementPeriodsPrice> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	SettlementPeriodsFixedPrice
Content:	complex, 1 attribute, 4 elements
Defined:	locally within CommodityFixedPrice.model group in fpml-com-5-11.xsd; see XML source

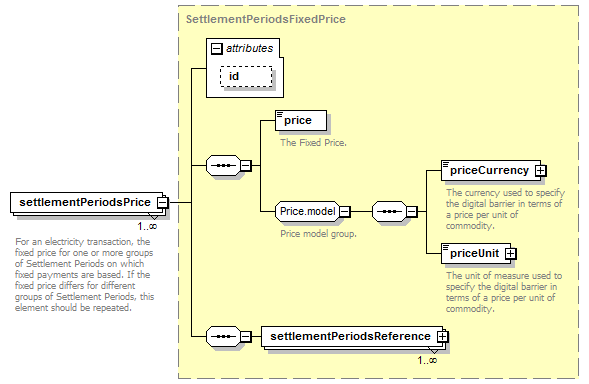

Content Model Diagram

XML Representation Summary

<settlementPeriodsPrice

xsd:ID

Content:

price, priceCurrency, priceUnit, settlementPeriodsReference+

</settlementPeriodsPrice>

Content model elements (4):

price (defined in FixedPrice complexType),

priceCurrency,

priceUnit,

settlementPeriodsReference (in settlementPeriodsPrice)

Included in content model of elements (1):

fixedLeg

Annotation

For an electricity transaction, the fixed price for one or more groups of Settlement Periods on which fixed payments are based. If the fixed price differs for different groups of Settlement Periods, this element should be repeated.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" name="settlementPeriodsPrice" type="SettlementPeriodsFixedPrice"/>
